Translational recoding signals between gag and pol in diverse LTR retrotransposons

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

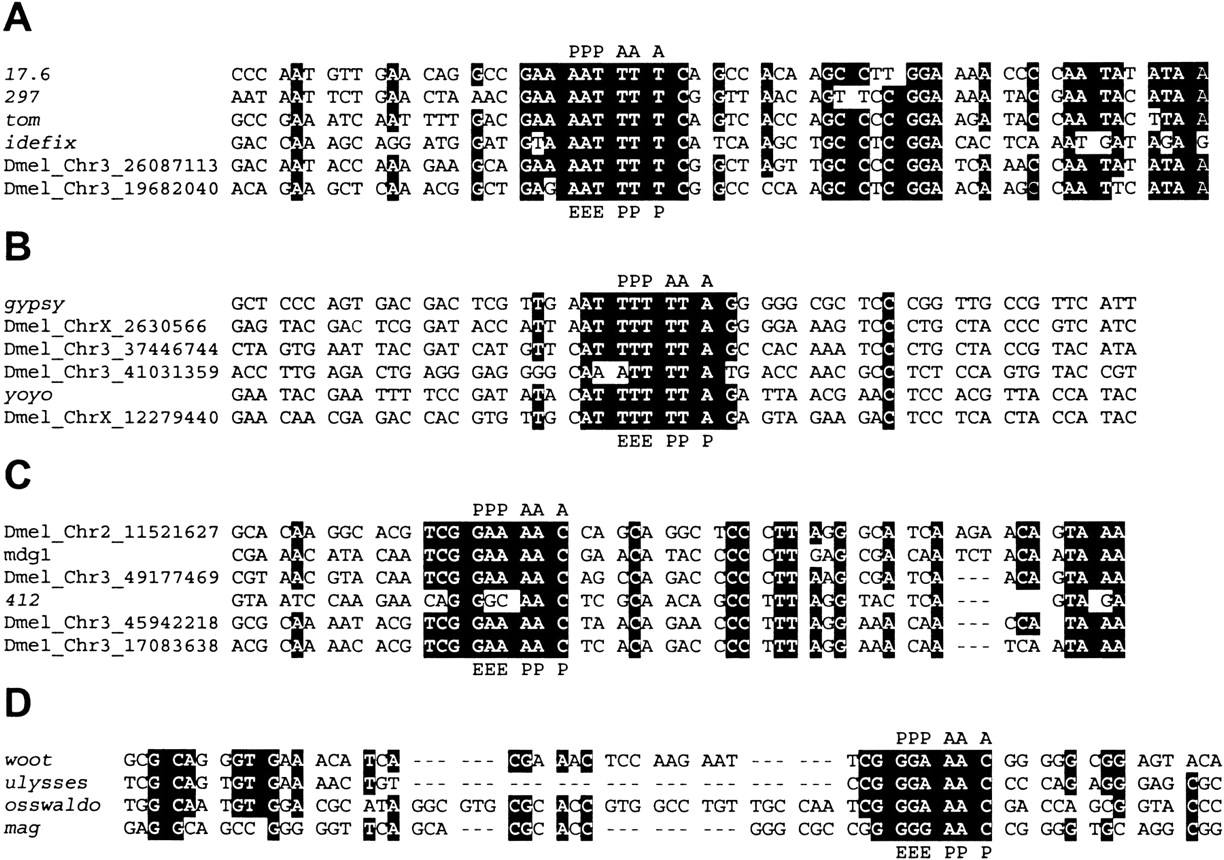

FIGURE 2.
FIGURE 2.

Codon alignments of retroelements with similar −1 frame cassettes in the overlap region between gag and pol. Panels A–D correspond to the four groups of retroelements depicted in Figure 1 that have pol in the −1 frame relative to gag. Sequences with greater than 75% identity are highlighted. Possible locations for tRNAs during frameshifting are marked by AAA (A-site), PPP (P-site), and EEE (E-site).
