RNase L produces tRNA-derived RNAs that contribute to translation inhibition

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

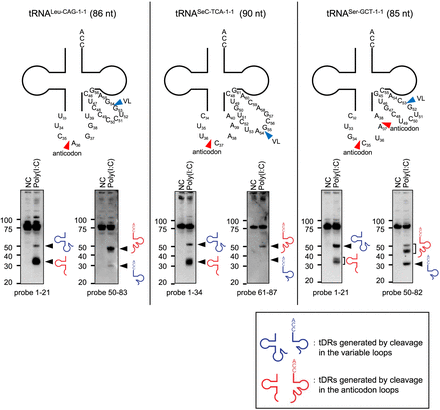

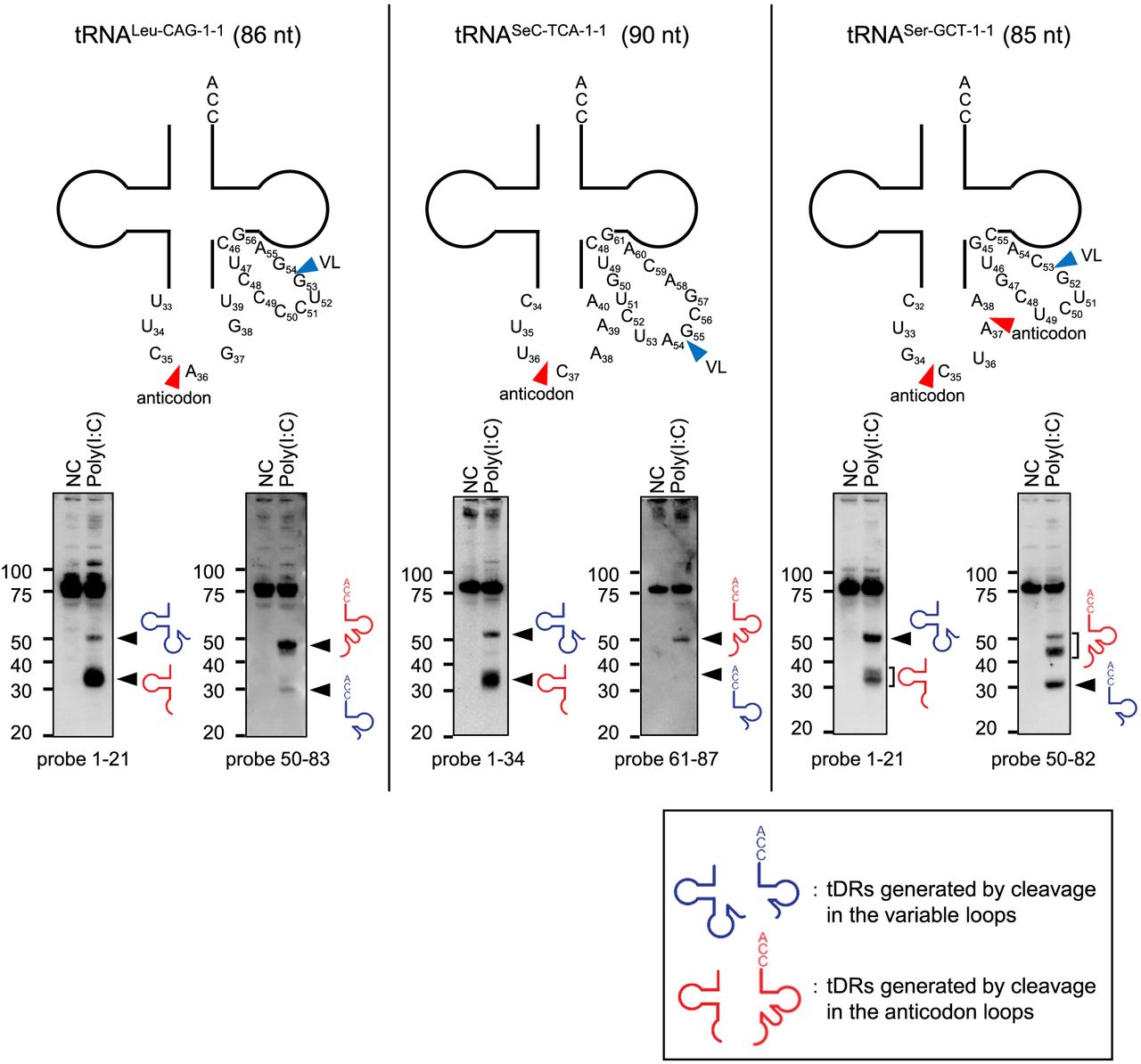

FIGURE 3.
FIGURE 3.

RNase L can target variable loops of tRNAs. To identify how the longer 5′-tDRs were generated from tRNALeu-CAG, tRNASec-TCA, and tRNASer-GCT, northern blotting was performed using both 5′ and 3′ probes for these tRNAs. The sequences around anticodon loops and variable loops in these tRNAs are shown. Predicted cleavage sites in anticodon loops and variable loops are indicated by red and blue arrowheads, respectively. (VL) Variable loop.
