Repression of AGO1 by AGO2 via let-7 microRNAs facilitates embryonic stem cell differentiation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

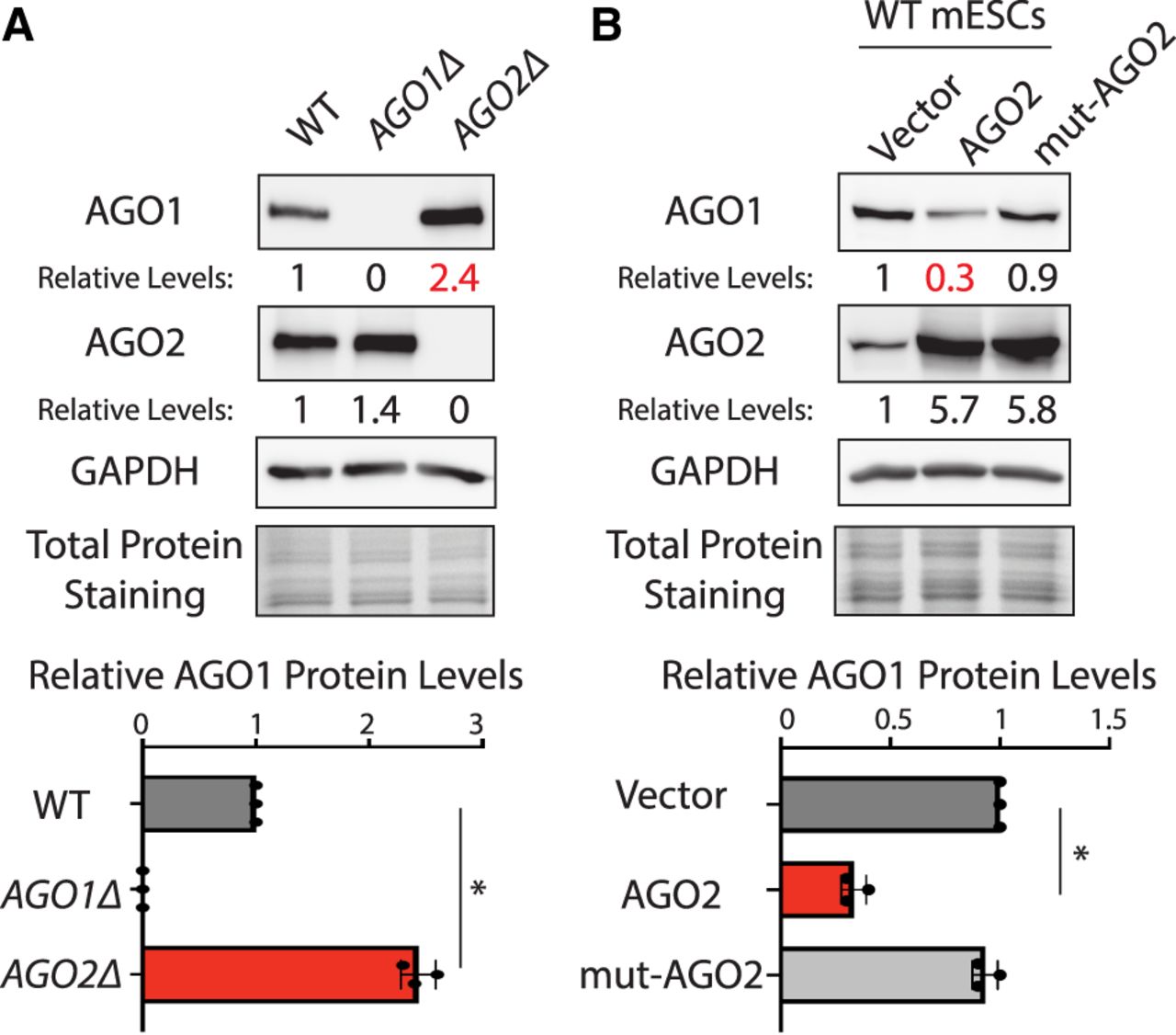

FIGURE 1.
FIGURE 1.

AGO2 represses AGO1 in mESCs. (A) Western blotting in the WT, AGO1Δ, and AGO2Δ mESCs cultured in the 15% FBS + Lif medium. (B) Western blotting in the WT mESCs expressing a vector, WT AGO2, and an RNA-binding mutant AGO2 in the 15% FBS + Lif medium. Data information: In A and B, representative western blots are shown, and the quantifications represent the means (±SD) of three independent experiments. GAPDH levels were used for normalization in calculating the relative protein levels. One-way ANOVA was used to determine the significance of the difference, (*) P < 0.05.

This Article

  1. RNA 31: 772-780
