Live-cell imaging of circular and long noncoding RNAs associated with FUS pathological aggregates by Pepper fluorescent RNA

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

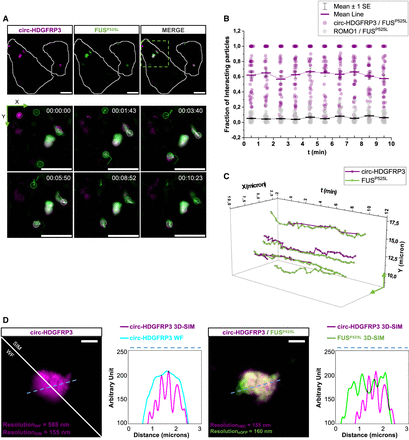

FIGURE 3.
FIGURE 3.

Visualization of exogenous circ-HDGFRP3 colocalizing with FUSP525L aggregates in living HEK 293T cells. (A) Representative HEK 293T cells transfected with p-circ-Ex4 expressing both circ-HDGFRP3 labeled with HBC620 (magenta) and GFP-FUSP525L (green). Lower panel shows a magnification view of the green dotted box with some circ-HDGFRP3 and FUSP525L particles interacting over time (duration 10 min; interval ∼11 sec). Spots and tracks detected with TrackMate Plug-in on Fiji-ImageJ are overlaid respectively as magenta (circ-HDGFRP3) and green (FUSP525L) circles and lines. Scale bars, 5 μm. (B) Scatter interval plot representing circ-HDGFRP3 (magenta) and ROMO1 (gray) fraction of interacting particles with FUSP525L over time. Dots represent individual measurements of number of interacting particles/total number of particles per cell in an interval of 1 min. Error bars represent ± SEM. Magenta and black lines represent mean values. Average and SEM values were calculated from 10 time-lapse measurements (duration 10 min; interval 11–13 sec) collected from four independent biological replicates for circ-HDGFRP3/FUSP525L interactions and from six measurements from two independent biological replicates for ROMO1/FUSP525L interactions. (C) Single-particle tracking of circ-HDGFRP3 and FUSP525L particles shown in A over time. The plot indicates circ-HDGFRP3 (magenta) and FUSP525L (green) xy-coordinates (micron) as a function of time (min). (D) Representative FUSP525L aggregate containing circ-HDGFRP3. Starting from left, signals of circ-HDGFRP3 labeled with HBC620 imaged with Widefield or with 3D-SIM are compared. Intensity profiles (Arbitrary Unit) along the reference blue dotted line of circ-HDGFRP3 signal imaged with Widefield (cyan) or with 3D-SIM (magenta) microscopy are plotted in second panel. Third panel shows FUSP525L signal (green) merged with circ-HDGFRP3 signal (magenta) imaged with 3D-SIM. Respective resolution values calculated on the image are indicated at the bottom of the image. In the last panel, intensity profiles (arbitrary unit) of circ-HDGFRP3 and FUSP525L imaged with 3D-SIM along the blue dotted line are represented. Scale bars, 1 μm.
