Live-cell imaging of circular and long noncoding RNAs associated with FUS pathological aggregates by Pepper fluorescent RNA

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 2.
FIGURE 2.

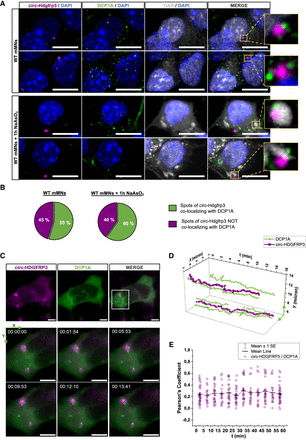

circ-Hdgfrp3 interacts with p-bodies in murine MNs and in living mammalian cells. (A) Upper panels: two examples of colocalization between circ-Hdgfrp3 (magenta) and DCP1A (green) in nonstressed mESCs-derived MNs. Lower panels: two examples of association between circ-Hdgfrp3 (magenta), DCP1A (green), and TIAR (gray) in stressed mESCs-derived MNs. Oxidative stress response was monitored with TIAR (gray) staining. Magnified yellow boxes highlight the colocalizing spots. Scale bars, 10 μm. (B) Quantification of circ-Hdgfrp3 spots colocalizing with DCP1A signals in murine MNs in nonstressed (left panel) and stressed (right panel) conditions (NWT MNs = 25 cells; NWT MNs+NaAsO2 = 30 cells). (C) Representative HEK 293T cells expressing circ-HDGFRP3 labeled with HBC620 (magenta) and GFP-DCP1A (green). Lower panel shows a magnification view of the white box with circ-HDGFRP3 and DCP1A interacting over time (duration 15 min; interval ∼11 sec). Spots and tracks detected with TrackMate Plug-in on Fiji-ImageJ are overlaid, respectively, as magenta (circ-HDGFRP3) and green (DCP1A) circles and lines. Scale bars, 5 μm. (D) Single-particle tracking of circ-HDGFRP3 and DCP1A spots shown in C over time. The plot indicates circ-HDGFRP3 (magenta) and DCP1A (green) xy-coordinates (micron) as a function of time (min). (E) Scatter interval plot representing PCC between circ-HDGFRP3 and DCP1A over time upon NaAsO2 administration. Dots represent individual measurements of PCC in an interval of 5 min collected from 17 time-lapse acquisitions (duration 1 h; interval 1–5 min) from two independent biological replicates. Horizontal lines indicate mean values and error bars represent ± SEM.

This Article

  1. RNA 31: 529-548
