Modulation of diverse biological processes by CPSF, the master regulator of mRNA 3′ ends

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 4.
FIGURE 4.

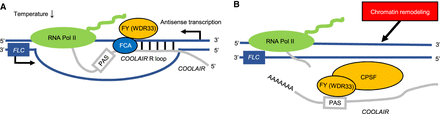

Arabidopsis thaliana FY (WDR33) regulates FLC gene expression by resolving the COOLAIR R loop. (A) In A. thaliana, low temperature induces antisense transcription at the FLC locus, producing the antisense transcript COOLAIR. COOLAIR hybridizes to the template DNA strand, forming an R loop, which is recognized by the FCA/FY (WDR33) complex. (B) FY (WDR33), as part of CPSF, activates polyadenylation of COOLAIR at a weak PAS, and the R loop is then resolved. This ultimately leads to epigenetic silencing of the FLC gene.

This Article

  1. RNA 30: 1122-1140
