Fungi of the order Mucorales express a “sealing-only” tRNA ligase

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 2.
FIGURE 2.

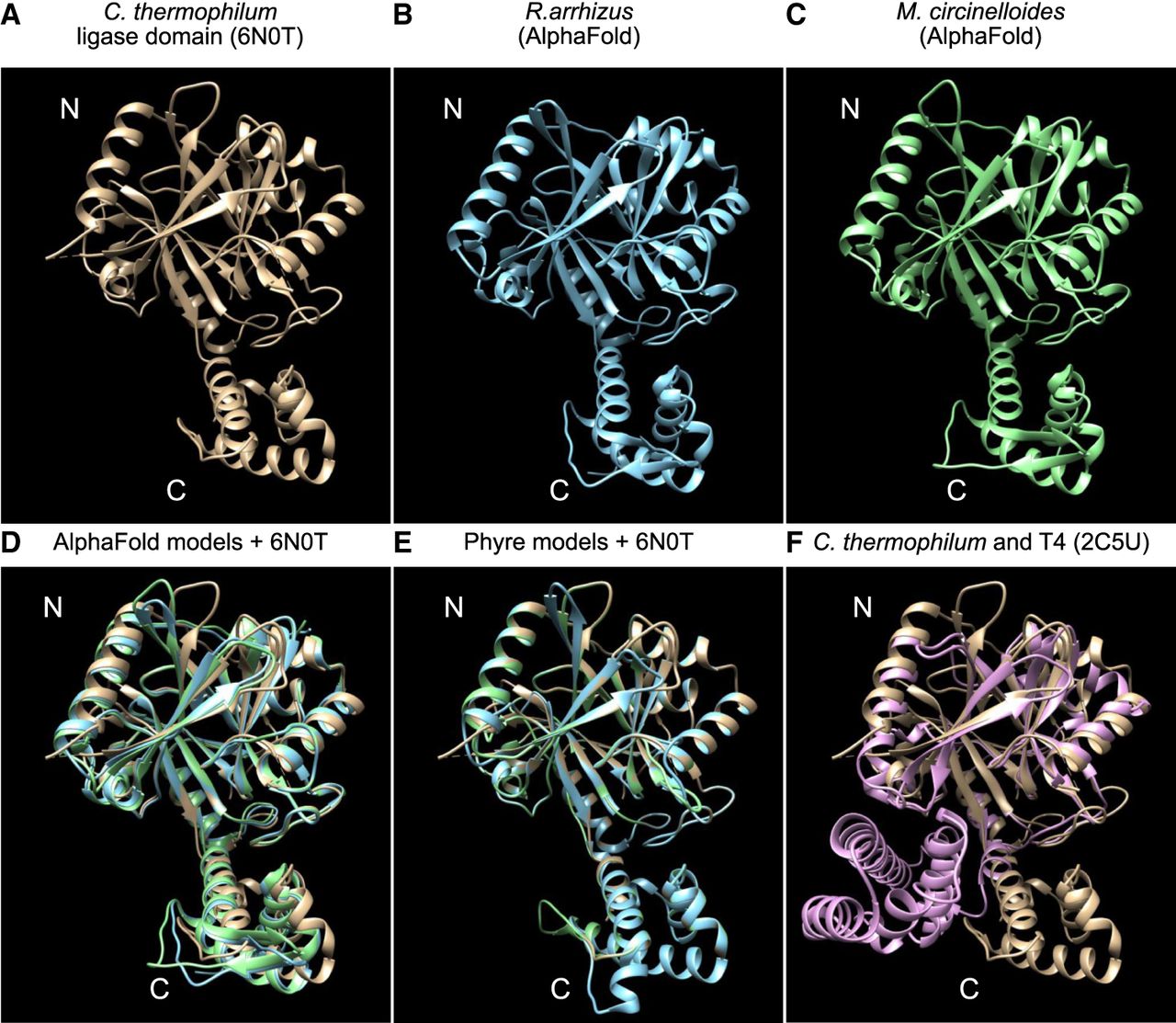

The predicted structures of Mucorales Trl1 resemble the ligase domain of fungal tRNA ligase. (A) X-ray crystal structure of the ligase domain of the ascomycete fungus C. thermophilum (6N0T). (B) The AlphaFold predicted the structure of R. arrhizus sealing-only Trl1. (C) The AlphaFold predicted the structure of M. circinelloides sealing-only Trl1. (D) Superimposition of X-ray crystal and AlphaFold predicted structures from A to C. Colors are as in A–C. For R. arrhizus RMSD is 0.913 Å over 247 Cα atoms; for M. circinelloides it is 0.901 Å over 244 Cα atoms. (E) Superimposition of X-ray crystal and Phyre predicted structures. Colors are as in A–C. (F) Superimposition of X-ray crystal structures of Trl1 ligase from C. thermophilum (6N0T) and T4 RNA ligase (2C5U; plum colored). The amino- and carboxy-terminal subdomains are indicated in each panel.

This Article

  1. Published in Advance February 2, 2024, doi: 10.1261/rna.079957.124 RNA 30: 354-366
