SCARPET: site-specific quantification of methylated and nonmethylated adenosines reveals m6A stoichiometry

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 3.
FIGURE 3.

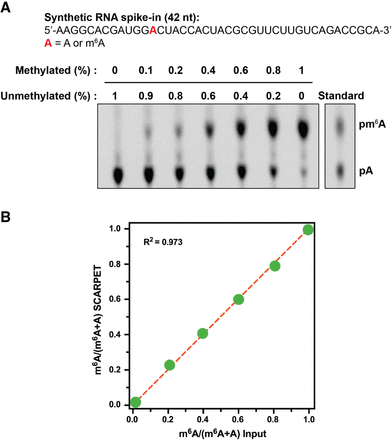

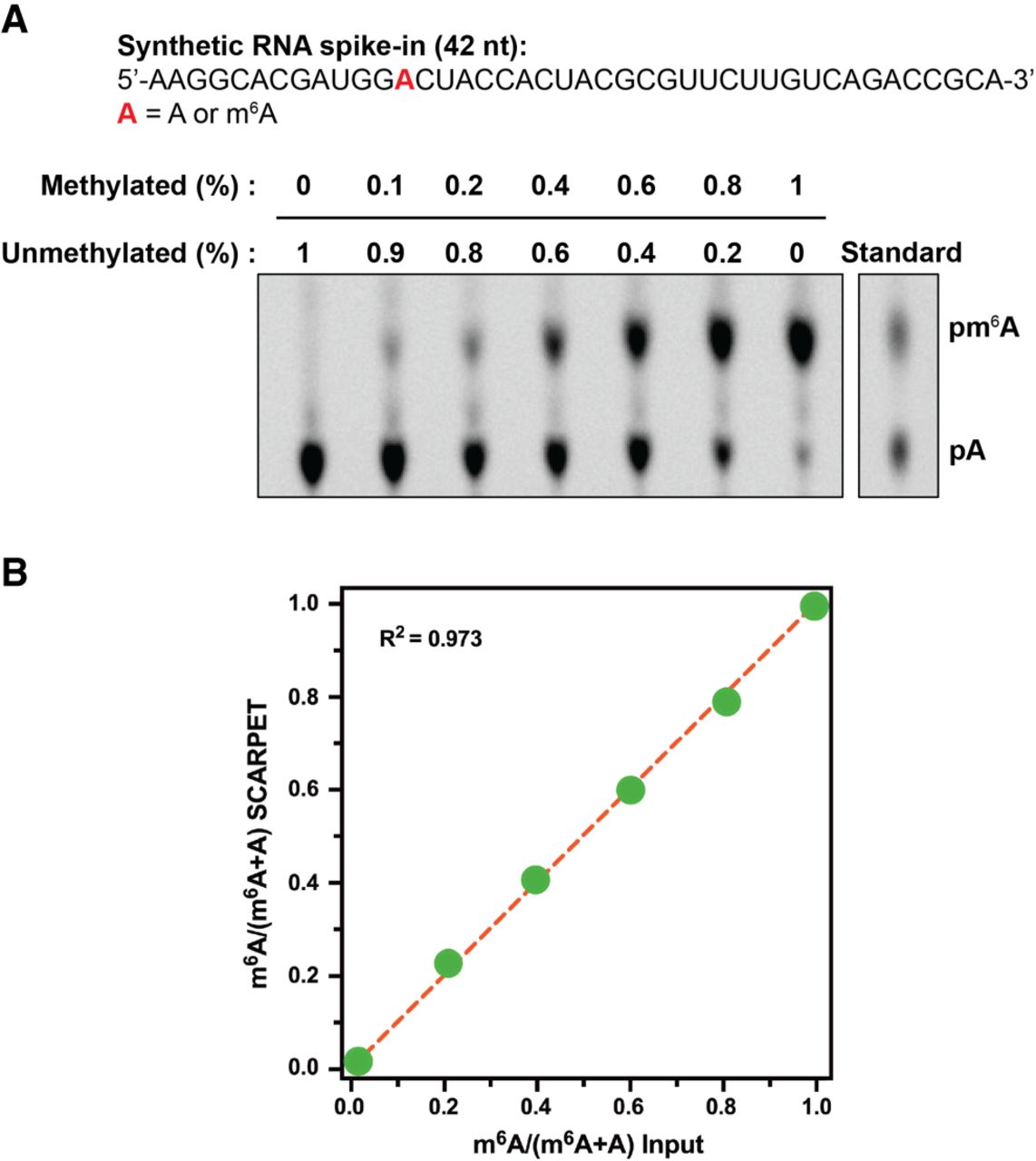

SCARPET accurately predicts m6A stoichiometry using methylated RNA standards. (A,B) SCARPET accurately predicts the stoichiometry of a methylation site in a mixture of two 42-nt long synthetic RNA oligonucleotides—one unmethylated and the other containing a defined m6A modification in a common GGACU consensus site for m6A. The two synthetic RNAs were mixed such that the m6A stoichiometry ranged from 0% to 100%. The mixture was added to 1 µg 2×-poly(A) HepG2 mRNA to simulate the conditions for biological m6A site determination in an mRNA. SCARPET predicted the m6A stoichiometry with high accuracy and showed excellent linearity (R2 = 0.973) to the input m6A fraction (B). 32P-labeled m6A and A nucleosides were run as TLC standards in A.
