An easy tool to monitor the elemental steps of in vitro translation via gel electrophoresis of fluorescently labeled small peptides

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 5.
FIGURE 5.

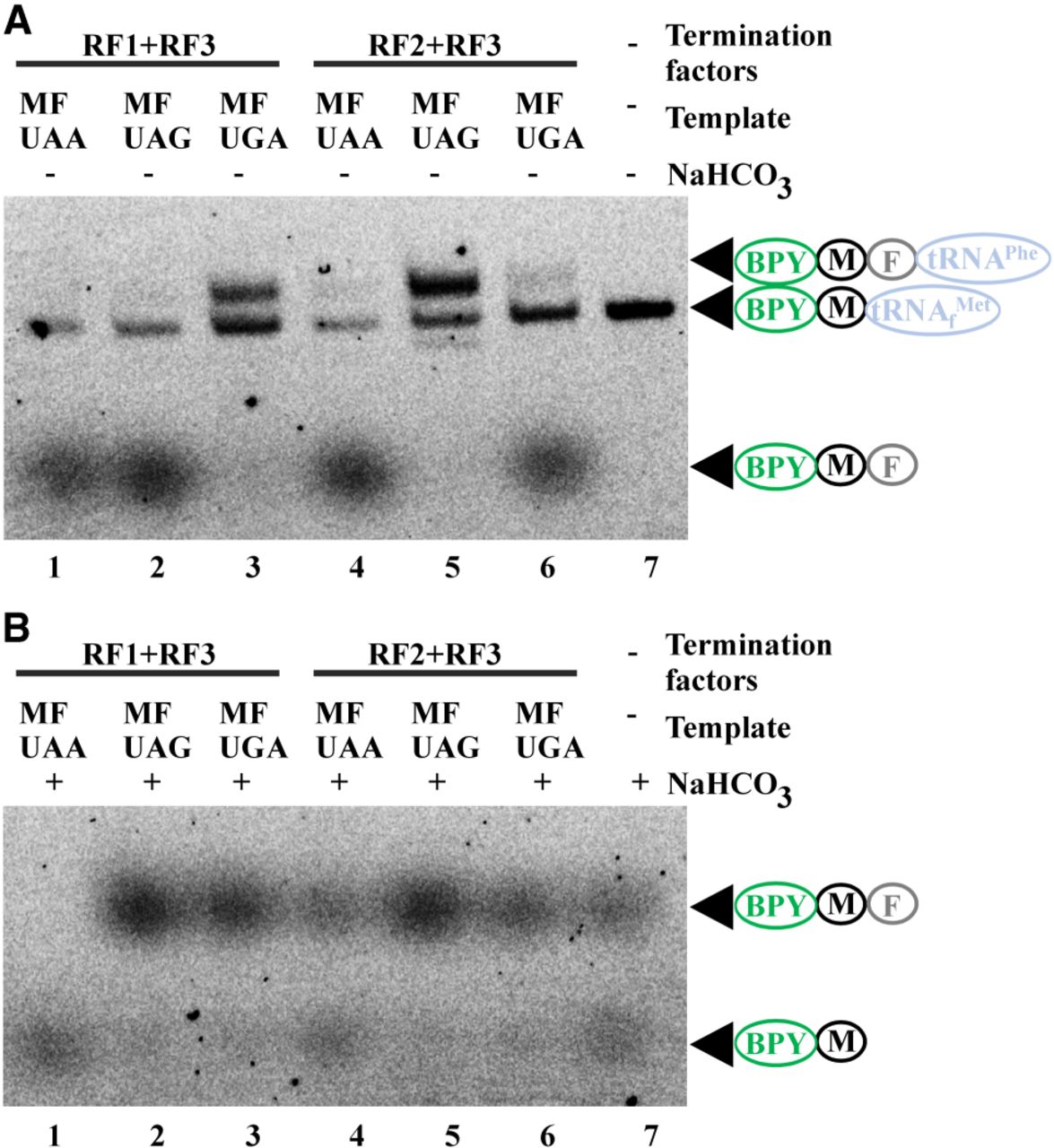

Monitoring translation termination efficiency by urea PAGE. MF-coding mRNAs with different stop codons (lanes 1, 4—UAA; 2, 5—UAG; 3, 6—UGA) were translated in vitro in the presence of BPY-M-tRNAfMet by PURExpress ΔRF123 Kit with the addition of either RF1 and RF3 (1–3) or RF2 and RF3 (4–6) RFs as indicated above the lanes. Lane 7 corresponds to the BPY-M-tRNAfMet. (A) Separation of translation products without chemical post-treatment. (B) Separation of translation products after hydrolysis by 1 M NaHCO3. BPY is marked with a green oval—BODIPY label; black circle—methionine; gray circle—phenylalanine residue; blue oval—tRNAfMet.

This Article

  1. Published in Advance December 26, 2023, doi: 10.1261/rna.079766.123 RNA 30: 298-307
