Identification, characterization, and structure of a tRNA splicing enzyme RNA 5′-OH kinase from the pathogenic fungi Mucorales

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

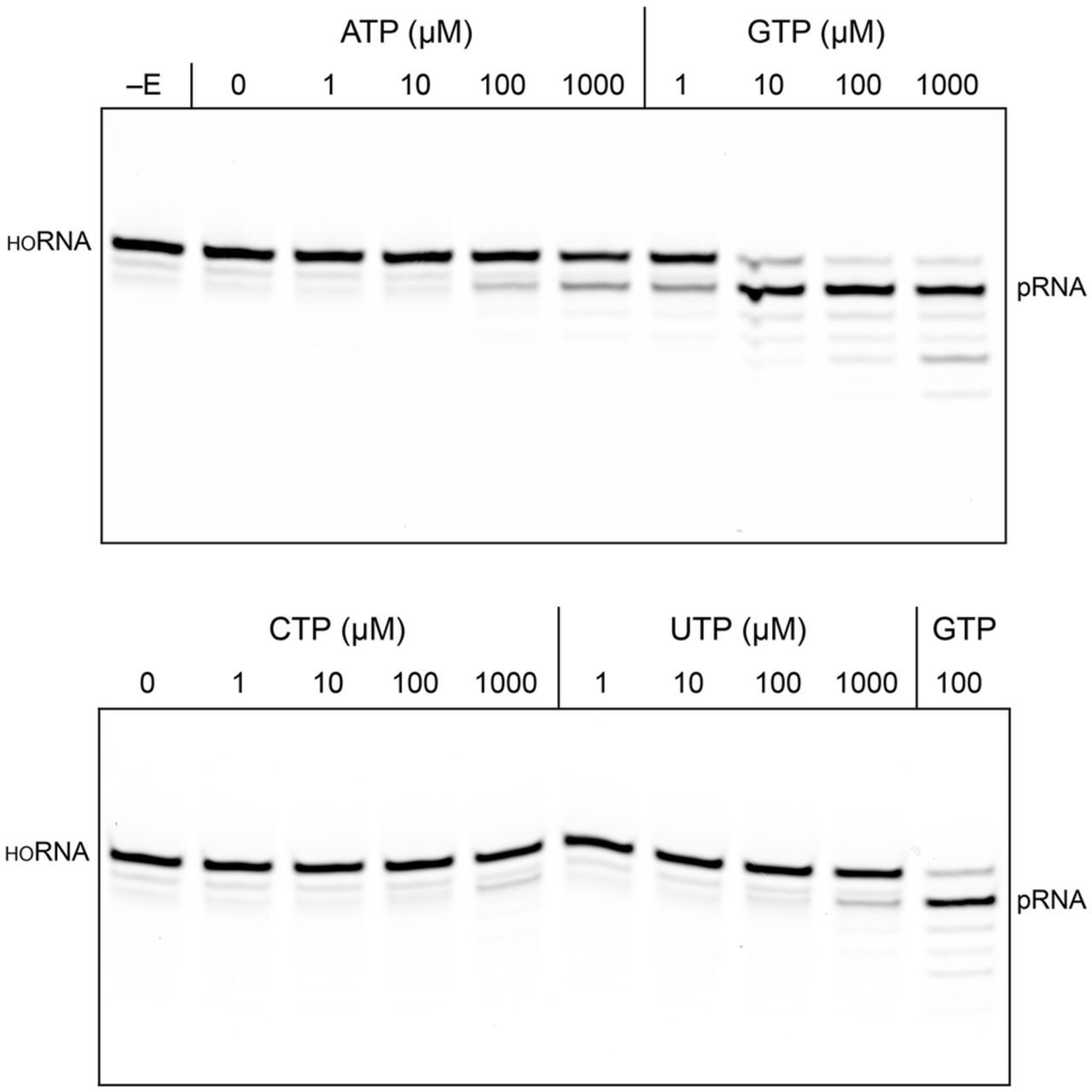

FIGURE 4.
FIGURE 4.

GTP is the preferred phosphate donor for MciKIN. Reaction mixtures (10 µL) containing 50 mM Tris-HCl, pH 7.5, 50 mM NaCl, 2 mM DTT, 1 mM MgCl2, 100 nM (1 pmol) 10-mer 5′-OH RNA substrate 3′-labeled with Cy5, 5 nM (50 fmol) MciKIN, and 0, 1, 10, 100, or 1000 µM of the indicated NTP were incubated at 37˚C for 5 min. MciKIN was omitted from the reaction mixture in lane –E. The reactions were quenched with formamide/EDTA, and the products were analyzed by urea-PAGE. The positions of the 10-mer HORNA substrate and the 10-mer pRNA product are indicated.

This Article

  1. RNA 30: 1674-1685
