The antivirulent Staphylococcal sRNA SprC regulates CzrB efflux pump to adapt its response to zinc toxicity

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

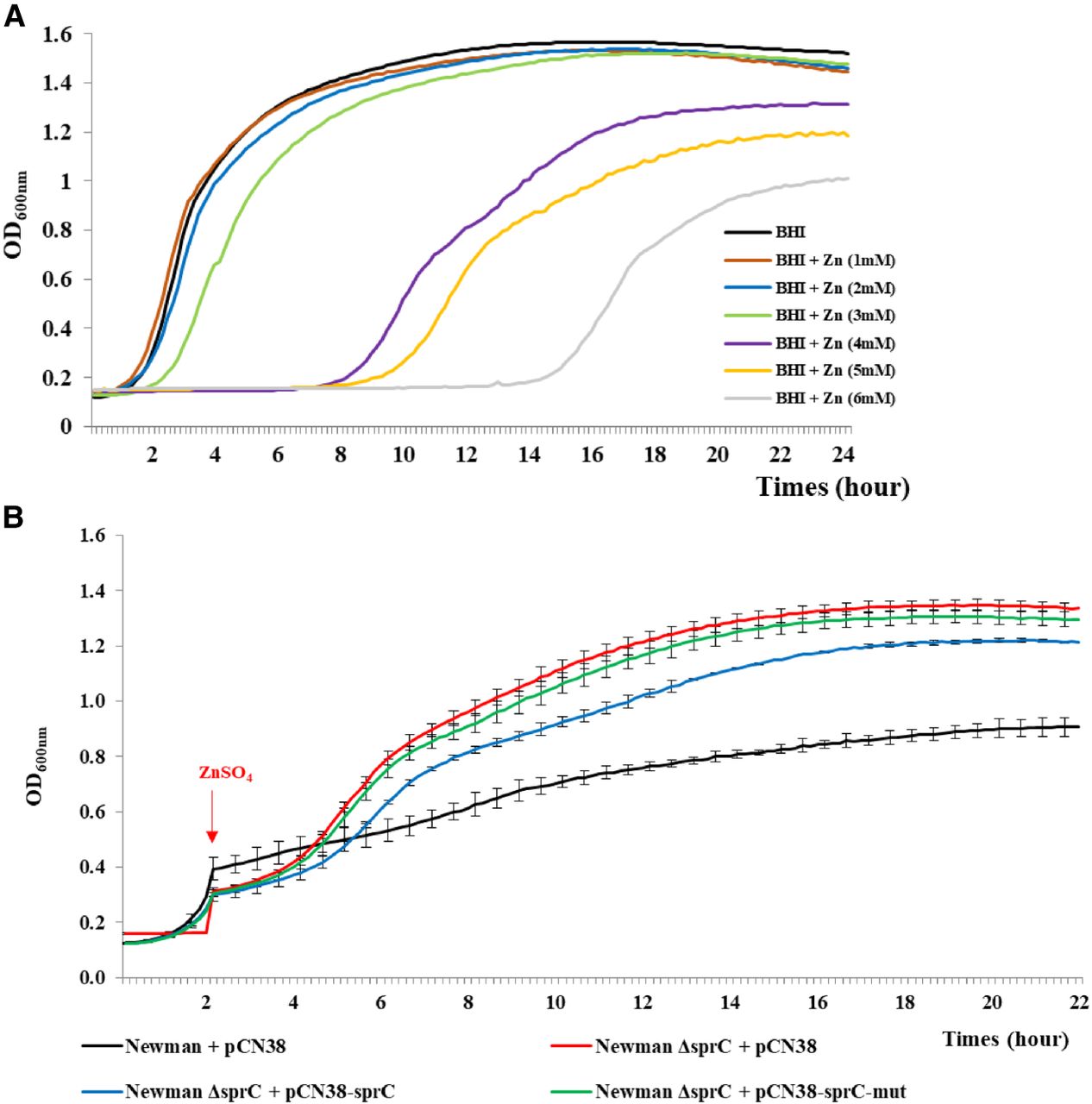

FIGURE 5.
FIGURE 5.

Stress zinc experiments. (A) Bacterial growth with increasing concentration of ZnSO4. (B) Bacterial growth after addition of 5 mM of ZnSO4 at T = 2 h of growth. The data were reproduced by three independent biological replicates.

This Article

  1. RNA 30: 1451-1464
