The antivirulent Staphylococcal sRNA SprC regulates CzrB efflux pump to adapt its response to zinc toxicity

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

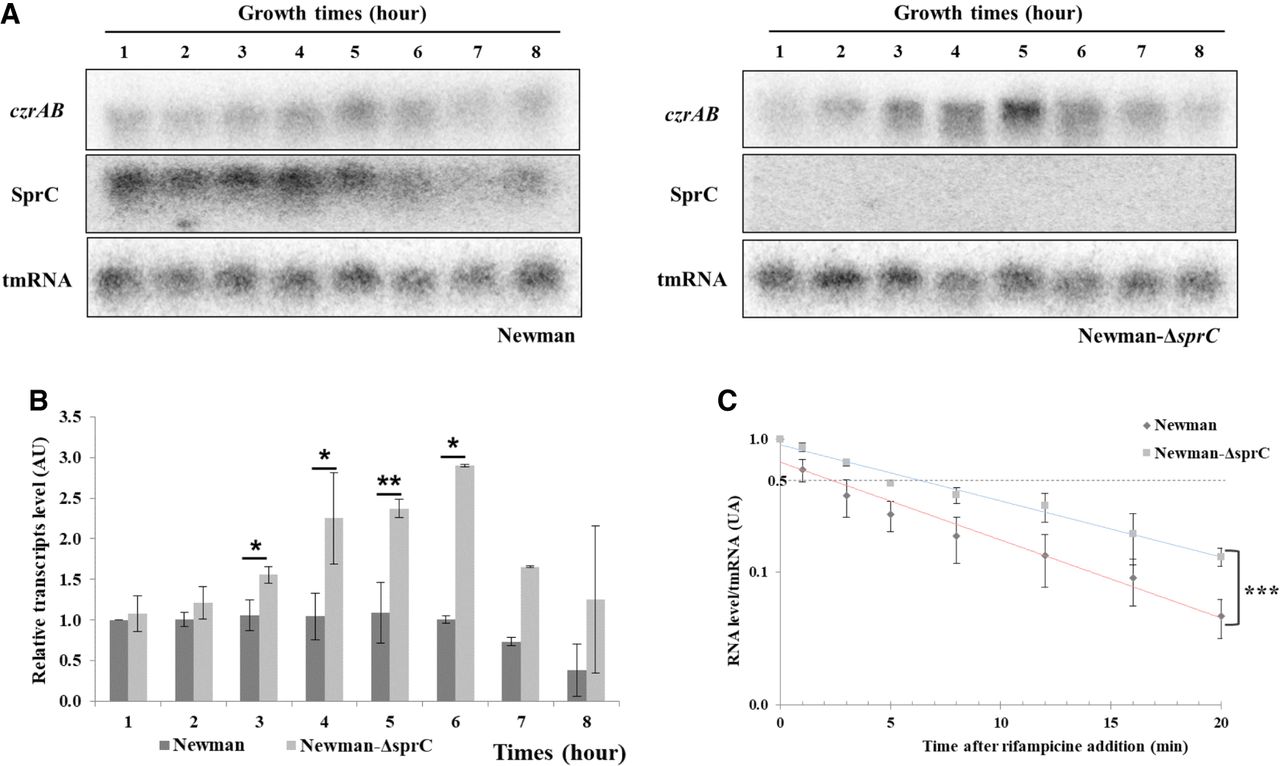

FIGURE 3.
FIGURE 3.

Northern blot analysis of czrAB transcript level and half-life determination. (A) Northern blot analysis of czrAB transcript level during bacterial growth as a function of SprC expression. (B) Relative quantification of czrAB transcript levels determined by northern blot and using tmRNA as an internal loading control. (C) Relative quantification of czrAB transcript levels during bacterial growth in the presence of rifampicin determined by northern blot and using tmRNA as an internal loading control. The data were reproduced by three independent biological replicates and analyzed with Student t-test (B, 2–6 h and then 8 h) or Mann–Whitney test (B, 1 h and 7 h) and paired samples t-test (C) for statistical analysis ([*] P < 0.05, [**] P < 0.01, [***] P < 0.005).

This Article

  1. RNA 30: 1451-1464
