The antivirulent Staphylococcal sRNA SprC regulates CzrB efflux pump to adapt its response to zinc toxicity

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

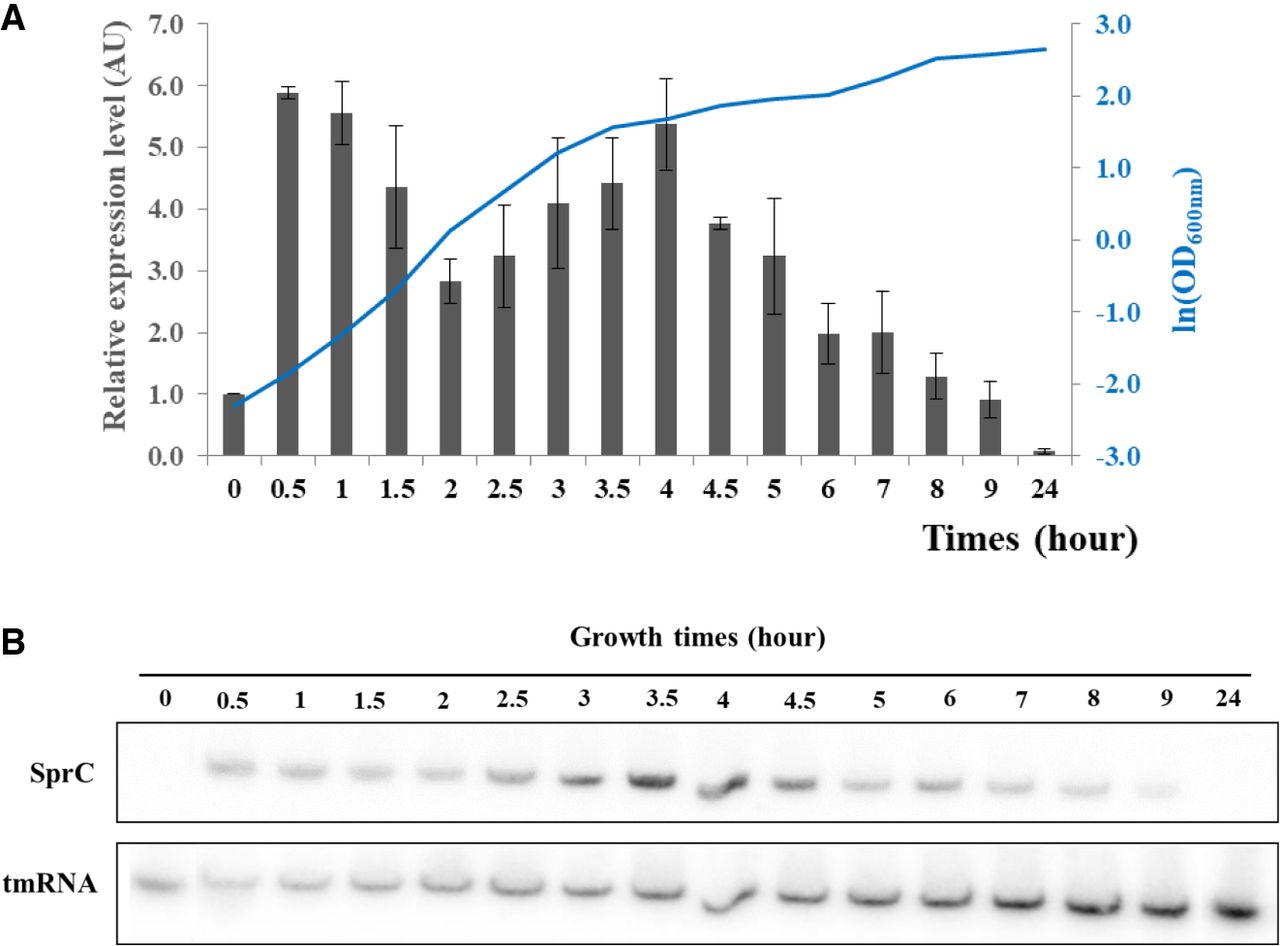

FIGURE 1.
FIGURE 1.

SprC expression during bacterial growth. (A) Relative quantification of SprC expression was determined by northern blot using tmRNA as an internal loading control. The data presented are the mean of three independent biological replicates. (B) One representative northern blot analysis of SprC expression during bacterial growth. Cells were cultured in BHI at 37°C, and total RNA was extracted every 30 min until 5 h of growth, then every hour.

This Article

  1. RNA 30: 1451-1464
