Consequences of depleting TNRC6, AGO, and DROSHA proteins on expression of microRNAs

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

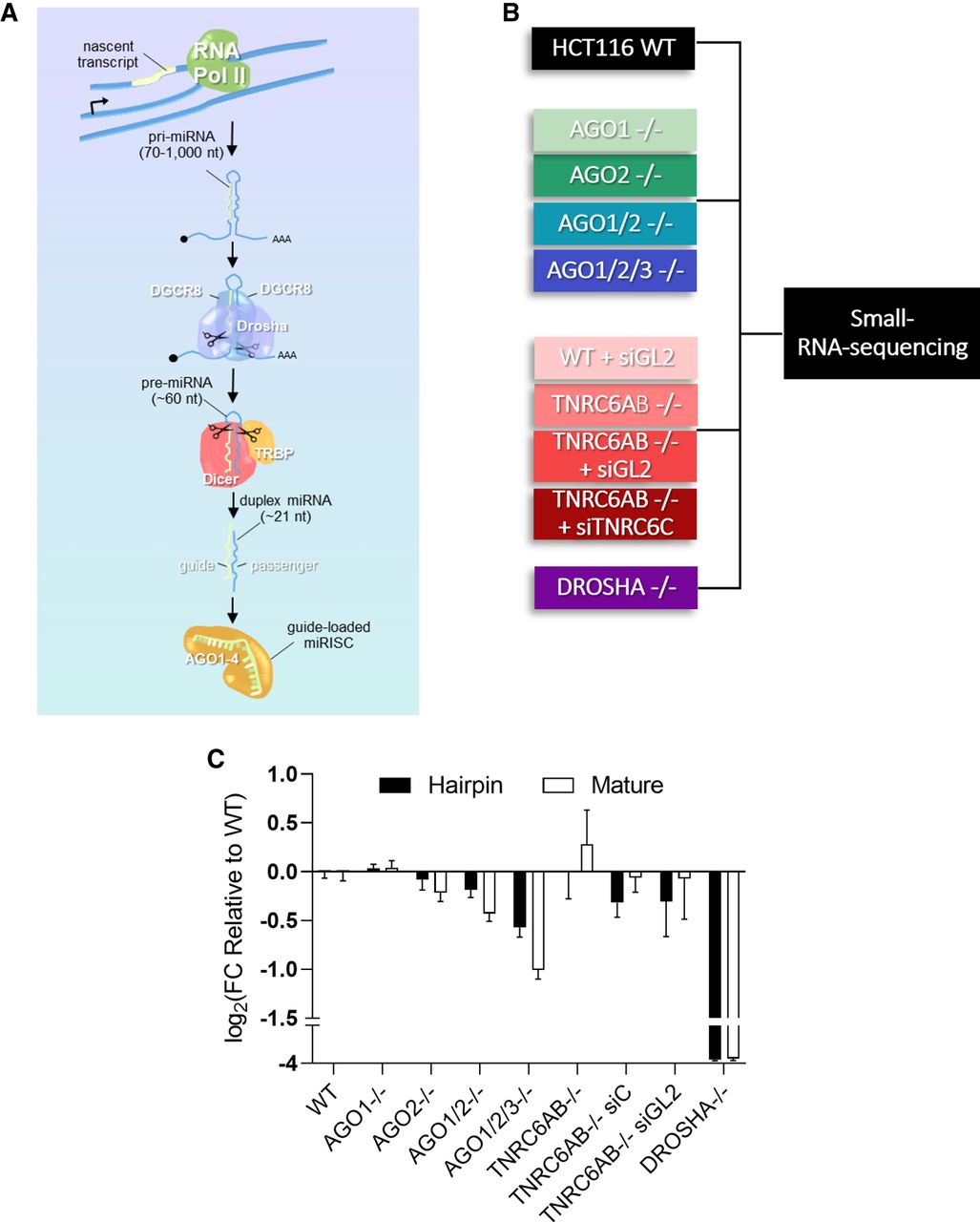

FIGURE 1.
FIGURE 1.

Effect of depleting essential RNAi factors on cellular miRNA profile. (A) Canonical miRNA biogenesis and miRNA guide strand incorporation into RNA-induced silencing complex (miRISC). (B) Experimental scheme for analyzing HCT116 WT and knockout cell lines by small-RNA-sequencing (RNA-seq). (C) Global hairpin and mature reads from RNA-seq and edgeR analysis.

This Article

  1. Published in Advance May 11, 2023, doi: 10.1261/rna.079647.123 RNA 29: 1166-1184
