Phosphorylation controls the oligomeric state of She2 and mRNA localization in yeast

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

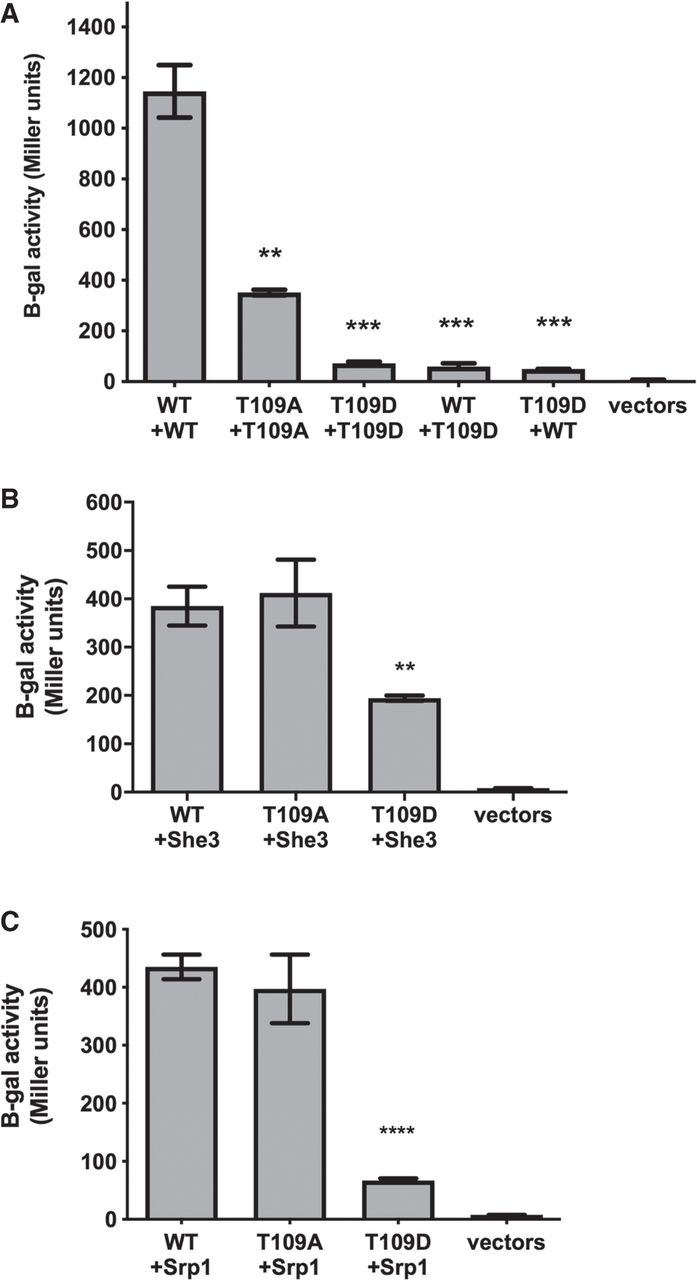

FIGURE 3.
FIGURE 3.

Phosphomimetic mutation at T109 inhibits the oligomerization of She2 and its interaction with cofactors Srp1 and She3. (A) Yeast two-hybrid assay to detect She2–She2 interaction. Homo- or hetero-oligomerization of wild-type She2 (WT), She2 T109A (T109A), or She2 T109D (T109D) was quantified by measuring β-galactosidase activity (N = 3). (**) P < 0.01; (***) P < 0.005. (B) Yeast two-hybrid assay to detect the interaction between She3 and She2 mutants at T109. Interaction between She3 and wild-type She2 (WT), She2 T109A (T109A), or She2 T109D (T109D) was quantified by measuring β-galactosidase activity (N = 3). (**) P < 0.01. (C) Yeast two-hybrid assay to detect the interaction between Srp1 and She2 mutants at T109. Interaction between Srp1 and wild-type She2 (WT), She2 T109A (T109A), or She2 T109D (T109D) was quantified by measuring β-galactosidase activity (N = 3). (****) P < 0.001.
