Identification of Up47 in three thermophilic archaea, one mesophilic archaeon, and one hyperthermophilic bacterium

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 2.
FIGURE 2.

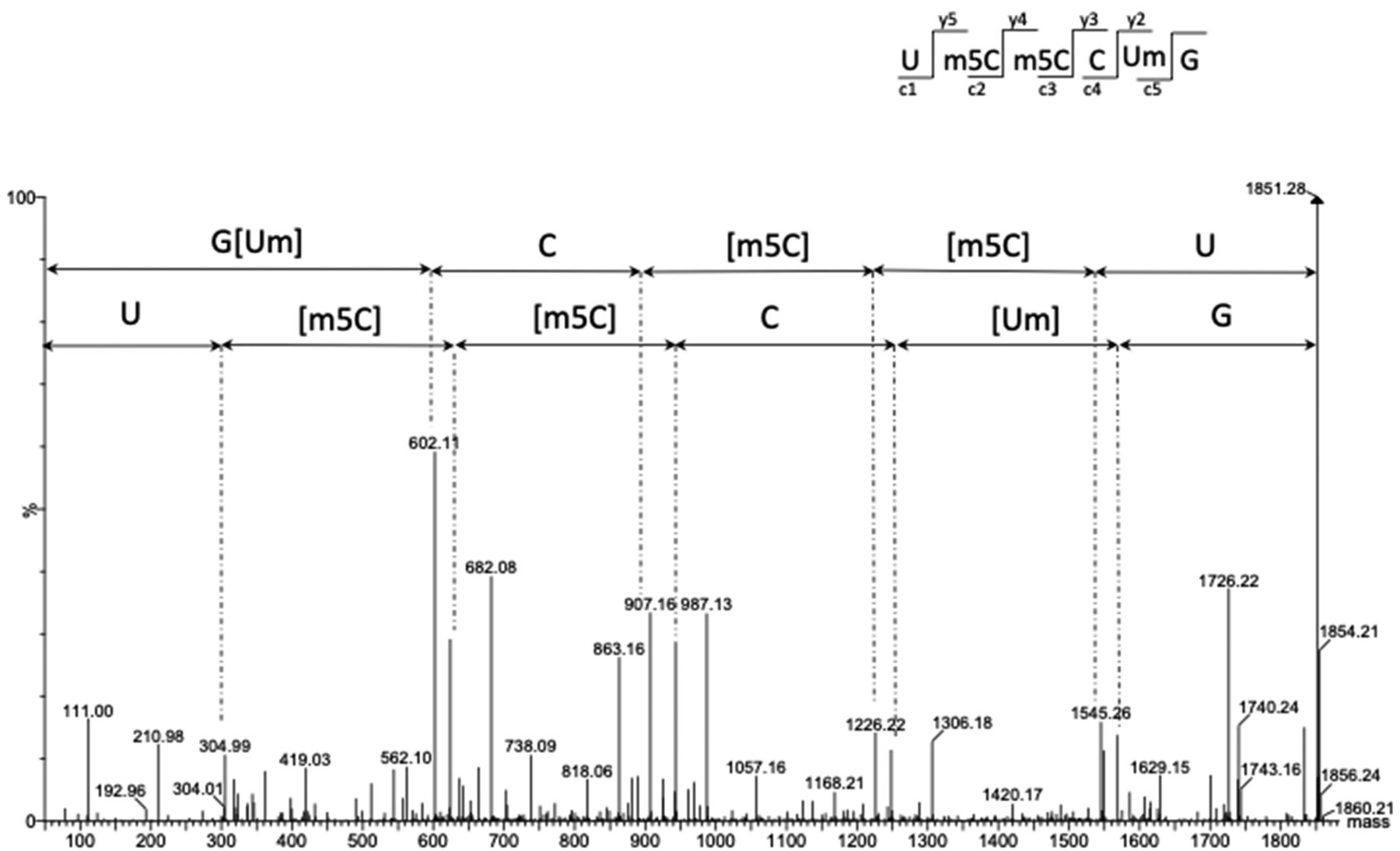

Deconvoluted MS/MS sequencing spectrum U(m5C)(m5C)C(Um)G of Ini-tRNA-CAU from S. acidocaldarius after T1 and BAP digestion (m/z = 925.13, z = −2). The spectrum clearly shows the ion fragments corresponding to U47 without phosphate (c1 = 305 and y5 = 1545). See Table 2 for localization of the fragment.

This Article

  1. Published in Advance February 9, 2023, doi: 10.1261/rna.079546.122 RNA 29: 551-556
