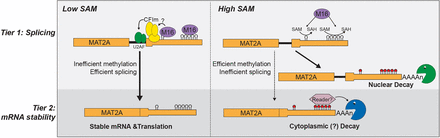

FIGURE 6.
Two-tiered model for MAT2A regulation by METTL16 and hp1–6. The model is described in the Discussion. Tier 1 (splicing) and Tier 2 (mRNA stability) are shaded in light and dark gray, respectively. The decay step is likely cytoplasmic, but this has not been fully verified, nor has a reader been fully characterized. For simplicity, the diagram depicts posttranscriptional regulation of the splicing step, but the splicing “choice” and presumably METTL16 methylation of the hairpins occur cotranscriptionally (Pendleton et al. 2018).
