Direct dsRNA preparation by promoter-free RCT and RNase H cleavage using one circular dsDNA template with a mismatched bubble

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

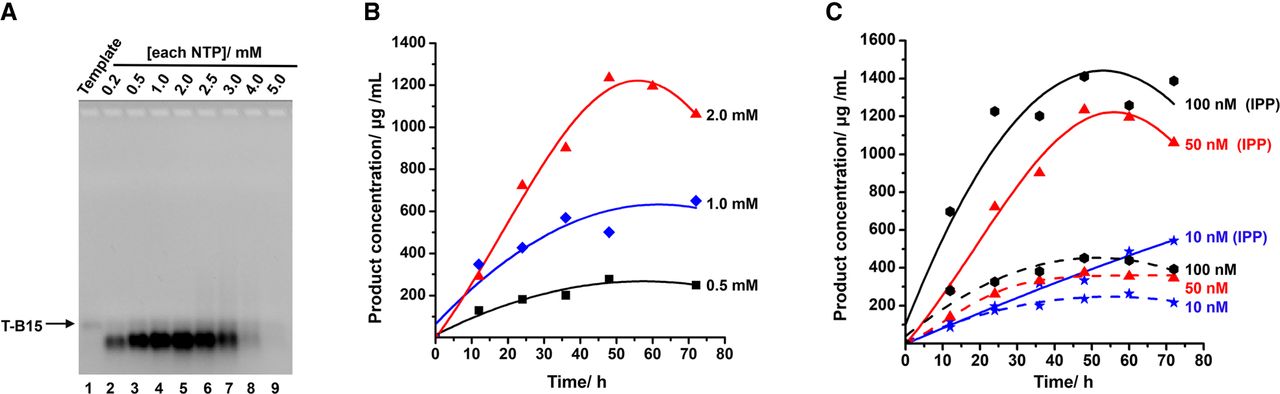

FIGURE 3.
FIGURE 3.

Effects of NTP concentration, dsDNA template concentration, and the addition of IPP on pfRCT. (A) NTP concentration. Other conditions: [T-B15] = 50 nM, without IPP, 24 h, 37°C. Analyzed by 1% agarose. (B) Time courses under various concentrations of each NTP. Other conditions: [T-B15] = 50 nM, with 1 U/mL IPP. (C) Time courses under various template concentrations, with or without IPP. [NTP]each = 2 mM, [IPP] = 0 or 1 U/mL. The reaction conditions are shown in Materials and Methods.

This Article

  1. Published in Advance August 3, 2023, doi: 10.1261/rna.079670.123 RNA 29: 1691-1702
