Biochemical and structural bioinformatics studies of fungal CutA nucleotidyltransferases explain their unusual specificity toward CTP and increased tendency for cytidine incorporation at the 3′-terminal positions of synthesized tails

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

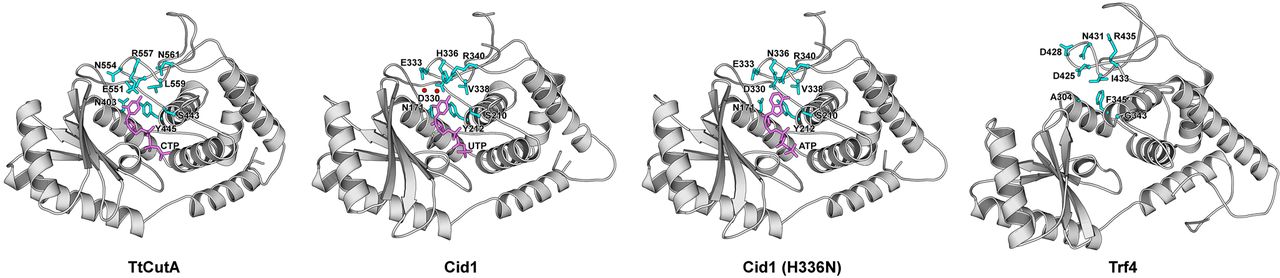

FIGURE 7.
FIGURE 7.

Comparison of the 3D model of TtCutA with CTP, and available crystal structures of poly(U) polymerase Cid1 with UTP (pdb|4fh5), Cid1 (H336N) mutant with ATP (pdb|4fhx), and noncanonical poly(A) polymerase Trf4 (pdb|3nyb). Key amino acids forming a nucleobase binding pocket are shown in blue. Nucleotides are shown in magenta. Position of CTP in TtCutA was taken from pdb|4fhv. Selected water molecules responsible for interactions between Cid1 and UTP are denoted by red spheres.
