Biochemical and structural bioinformatics studies of fungal CutA nucleotidyltransferases explain their unusual specificity toward CTP and increased tendency for cytidine incorporation at the 3′-terminal positions of synthesized tails

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

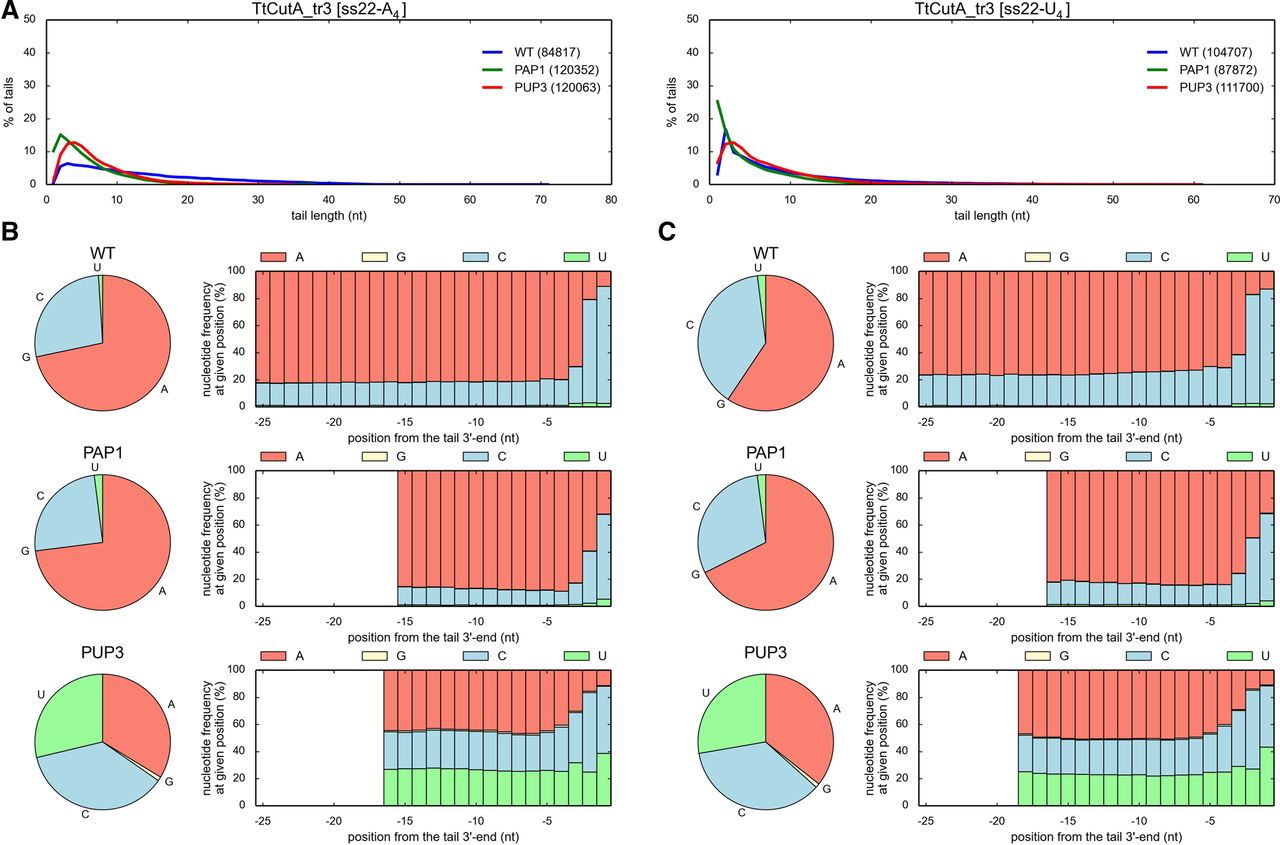

FIGURE 10.
FIGURE 10.

Specificity of TtCutA with an excess of ATP over other nucleotides. (A) Length distribution for tails added by wild-type (WT) and mutant (PAP1 and PUP3) TtCutA_tr3 variants to ss22-A4 (left) and ss22-U4 (right) oligoribonucleotide substrates in the presence of 10:1:1:1 ATP:GTP:CTP:UTP molar ratio. Numbers of analyzed sequences, obtained after 3′-RACE-seq high-throughput analysis for each protein variant, are indicated in parentheses. (B,C) Analysis of nucleotide composition for tails added by different TtCutA_tr3 variants to ss22-A4 (panel B) and ss22-U4 (panel C) RNA substrates at physiologically relevant NTP ratio. Results are presented as in Figure 6.

This Article

  1. RNA 23: 1902-1926
