KREPB6, KREPB7, and KREPB8 are important for editing endonuclease function in Trypanosoma brucei

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 6.
FIGURE 6.

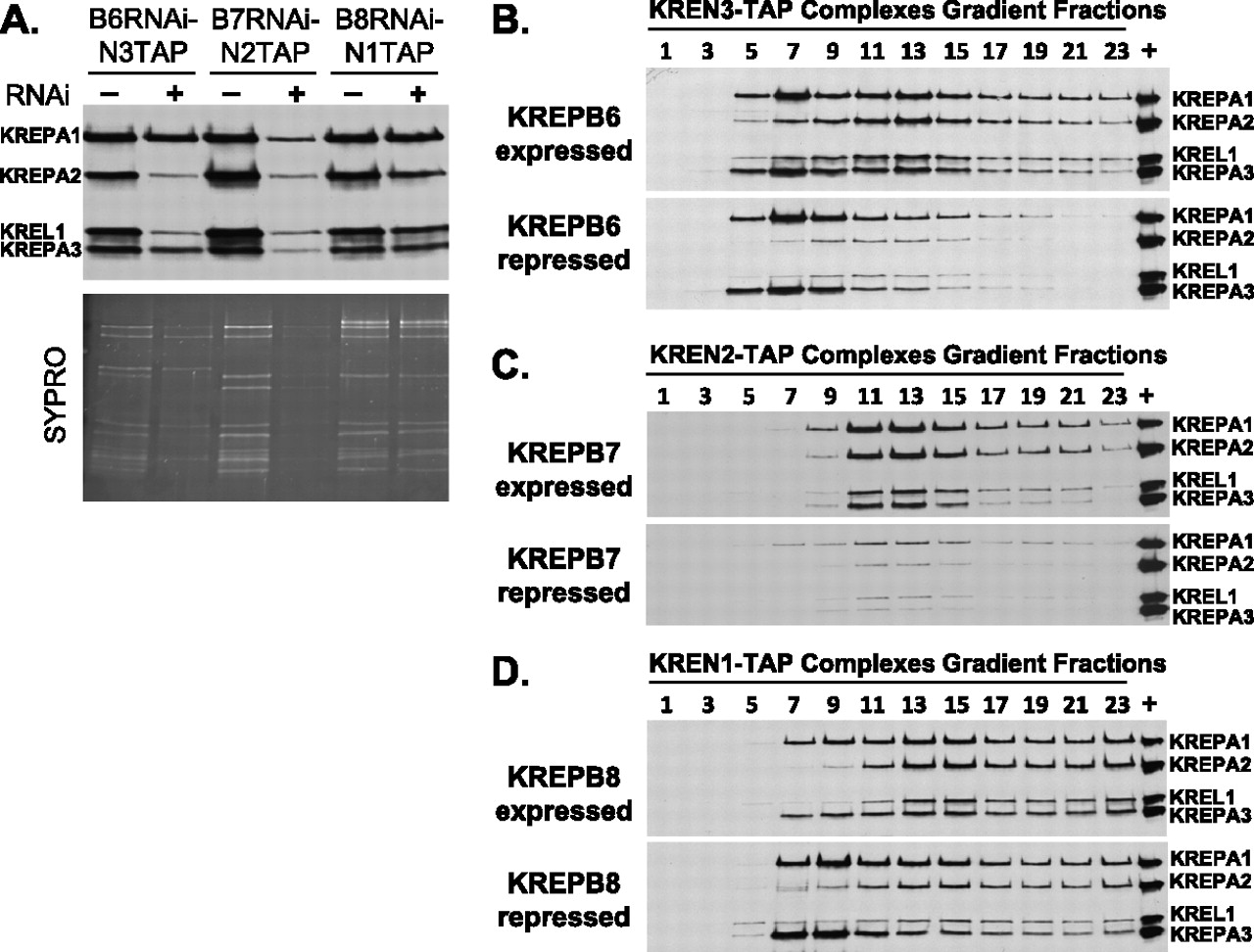

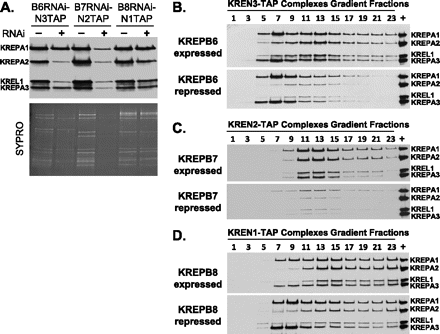

Effects of KREPB6, KREPB7, or KREPB8 repression on tagged KREN3, KREN2, or KREN1 editosomes, respectively. (A) Western analysis using an MAb mixture (upper panel) and SYPRO-Ruby stained gels (lower panel) of editosomes that were purified via the TAP-tag from total cell lysates. Editosomes were purified by sequential IgG Sepharose and calmodulin affinity chromatography from equal numbers of KREPB6 RNAi-N3TAP, KREPB7 RNAi-N2TAP, KREPB8 RNAi-N1TAP cells in which the KREPB protein expression was repressed by RNAi for 6 d (+) or were nonrepressed (−). (B–D) Western analysis of the glycerol gradient fractions of the complexes purified via IgG affinity chromatography and TEV protease cleavage from these cells.
