Functional consequences of T-stem mutations in E. coli tRNAThrUGU in vitro and in vivo

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

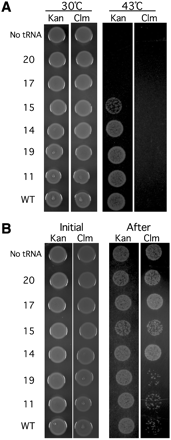

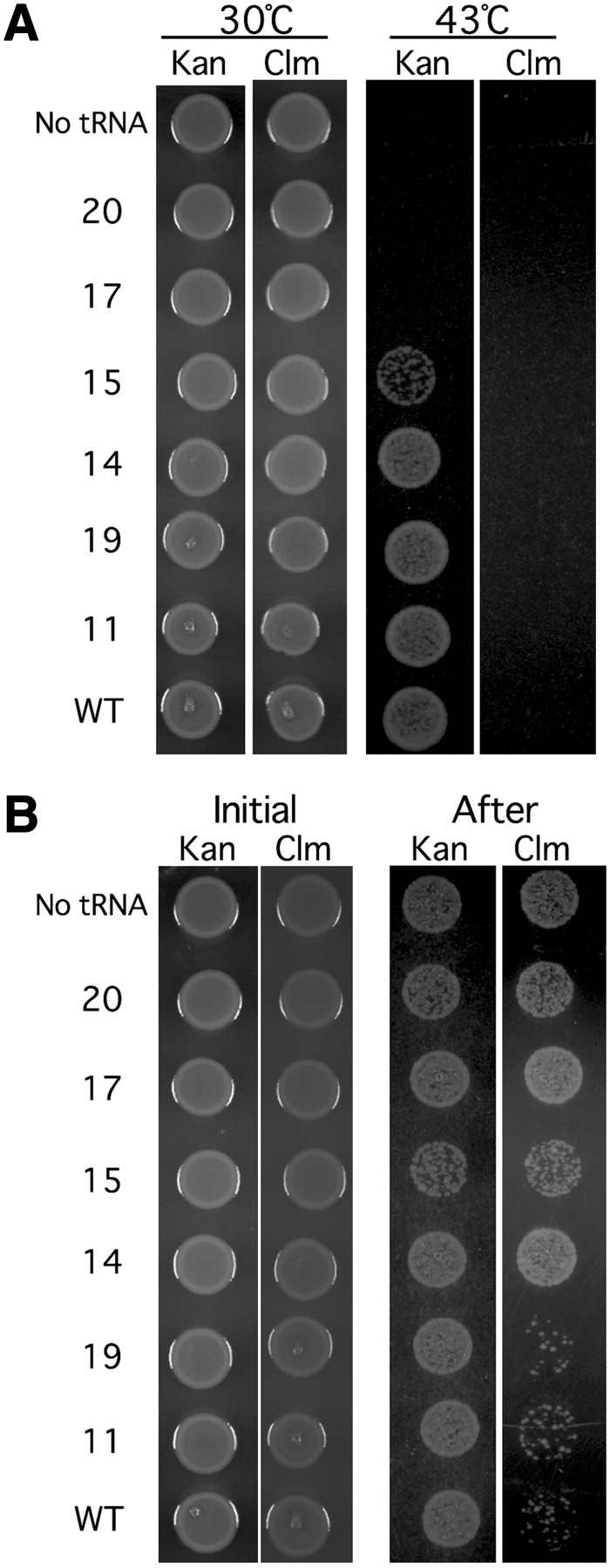

FIGURE 3.
FIGURE 3.

Growth phenotypes and retention of pMAK705 for strains expressing selected tRNAThrUGU variants from the low-copy plasmid (placZACA) that confers kanamycin resistance. Each spot represents equivalent numbers of cells. (A) Growth of E. coli tRNAThrUGU gene knockout strains on plates containing kanamycin (Kan) and chloramphenicol (Clm) at temperatures that are permissive (30°C) or nonpermissive (43°C) for replication of the maintenance plasmid, pMAK705, which confers chloramphenicol resistance. (B) Each strain was continuously grown at 30°C in liquid media containing Kan and the loss of the maintenance plasmid was monitored by testing the initial resistance of each two-plasmid strain to Clm (left panel) and after ∼36 h of growth (right panel).
