Plasticity of the RNA kink turn structural motif

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 1.
FIGURE 1.

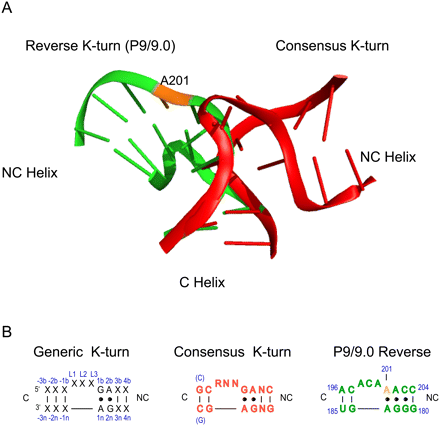

(A) Reverse K-turn bent toward the major grooves (green) and consensus K-turn bent toward the minor grooves (red) with position A201 of the Azoarcus intron highlighted in orange. (B) Generic K-turn numbering system (black) as compared with consensus (red) and reverse K-turns (green) with position A201 highlighted in orange.

This Article

  1. Published in Advance February 9, 2010, doi: 10.1261/rna.1883810 RNA 16: 762-768
