Use of nucleotide analogs by class I and class II CCA-adding enzymes (tRNA nucleotidyltransferase): Deciphering the basis for nucleotide selection

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

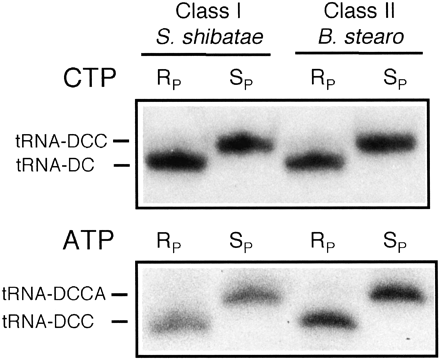

FIGURE 1.
FIGURE 1.

Stereochemistry of CCA addition. Addition of the RP and SP isomers of CTP or ATP to tRNA lacking CA or A was assayed under standard conditions using 100 μM CTP (RP and SP) or 200 μM ATP (RP and SP). Although modest addition was observed when the concentration of the RP isomer of ATP was increased to 600 μM (data not shown), this presumably reflects incorporation of SP isomer slightly contaminating the RP preparation; mixing experiments suggested that a 10% contamination of RP with SP could account for the data.

This Article

  1. RNA 9: 970-981
