A high-capacity RNA affinity column for the purification of human IRP1 and IRP2 overexpressed in Pichia pastoris

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

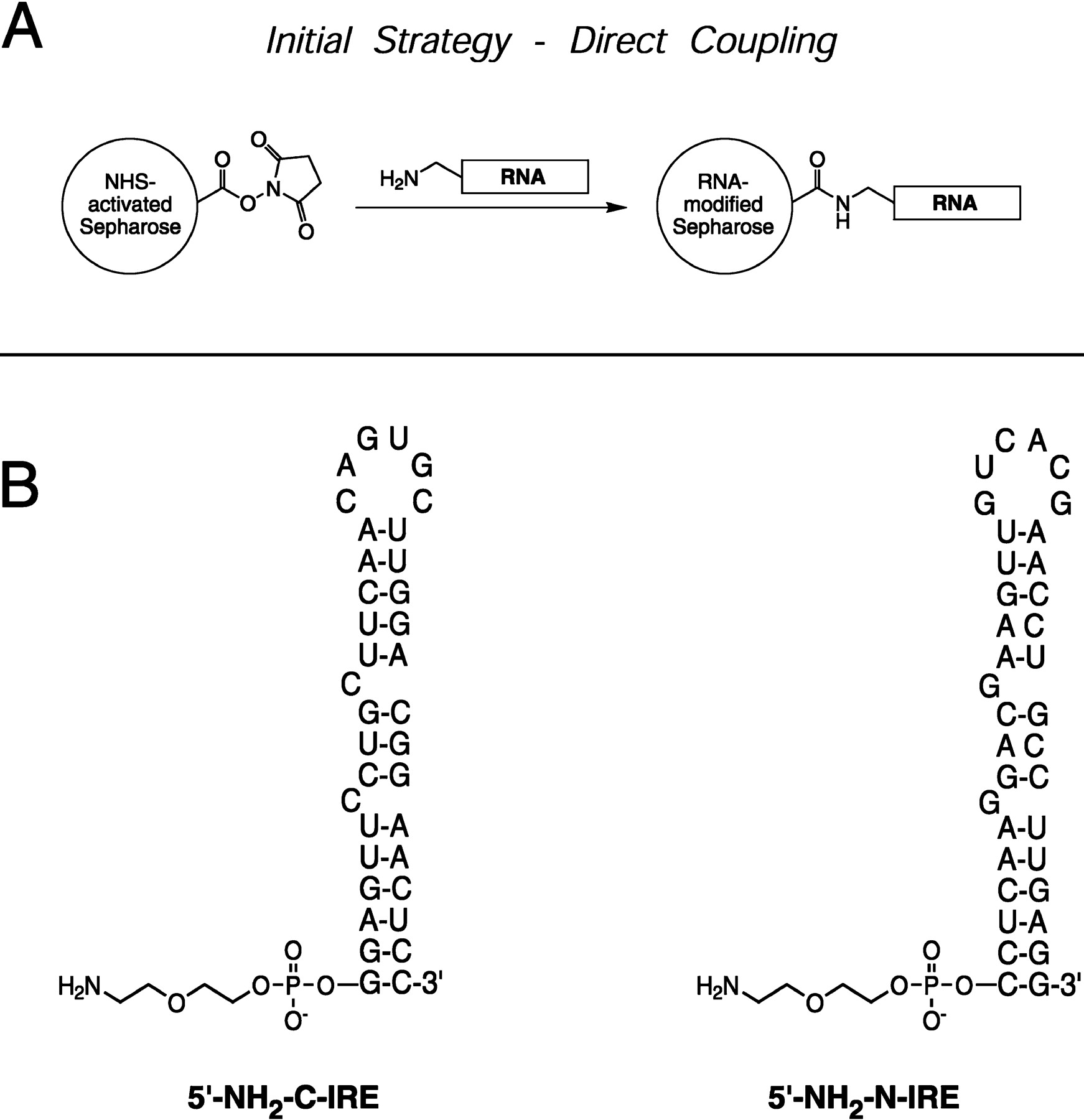

FIGURE 2.
FIGURE 2.

A conceptually simple method for the covalent attachment of an RNA to an NHS-modified support. (A) An RNA bearing an alkylamine tether, whether located at the 5′ end of the RNA or elsewhere, ought to react through a direct nucleophilic attack at the N-hydroxysuccinimidyl-ester activated carbonyl. This direct coupling proved too inefficient for the preparation of a large-capacity column. (B) Two sequences were used for the synthesis of RNA columns. The RNA 5′-NH2-C-IRE corresponds to a consensus iron-responsive element sequence, and has a 5-atom alkyl-ether amine tether appended to the 5′ terminal phosphate. The negative control, 5′-NH2-N-IRE is similarly modified with a 5′-alkylamine tether, but has a sequence that is the exact complement of the consensus IRE.

This Article

  1. RNA 9: 364-374
