Evolutionary conservation of the U7 small nuclear ribonucleoprotein in Drosophila melanogaster

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 5.
FIGURE 5.

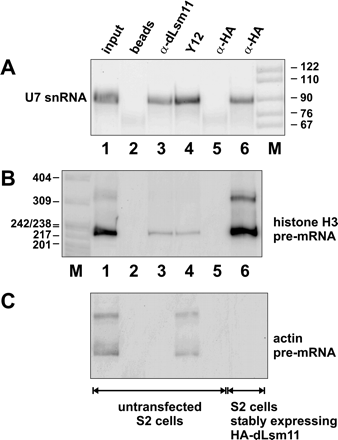

Association of Drosophila Lsm11 with Drosophila U7 snRNA and histone H3 pre-mRNA. Nuclear extracts of either untransfected Drosophila S2 cells (lanes 25) or S2 cells stably expressing HA-dLsm11 (lane 6) were subjected to precipitation with protein G–Sepharose beads either lacking antibody (lane 2) or coated with the antibodies indicated above each lane. Lane 1, sample of input nuclear extract from untransfected S2 cells. RNA from each sample was extracted and subjected to RT-PCR for Drosophila U7 snRNA (A), histone H3 pre-mRNA (B), or β-actin pre-mRNA (C). M indicates end-labeled HpaII digest of pBR322 used as size marker.

This Article

  1. RNA 9: 1532-1541
