Phylogenetic conservation of RNA secondary and tertiary structure in the trpEDCFBA operon leader transcript in Bacillus

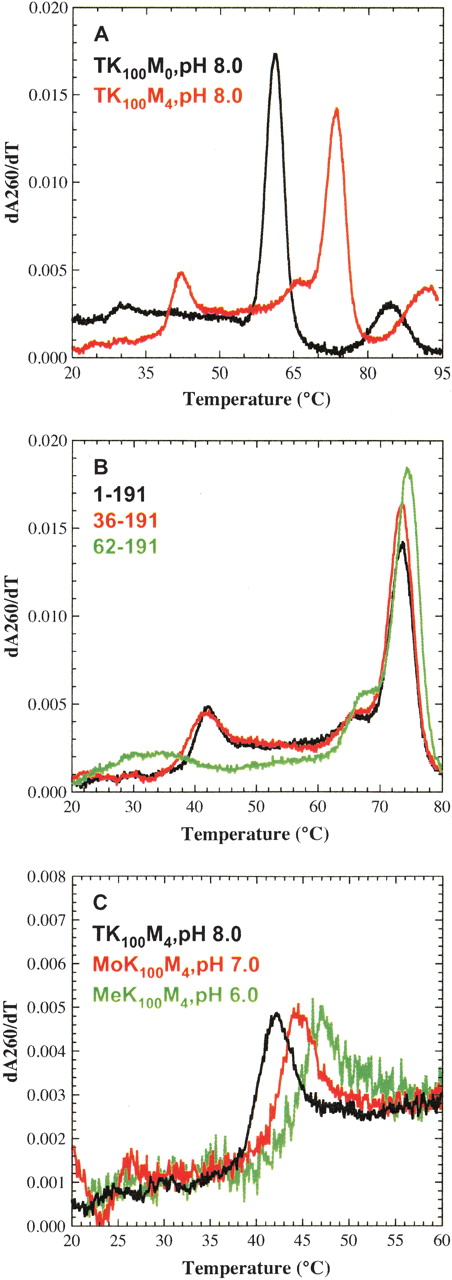

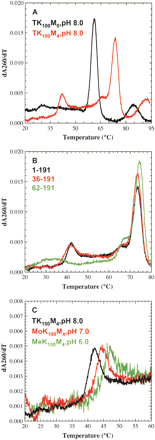

Thermal denaturation curves for B. stearothermophilus trp leader RNA. RNAs were melted from 5°C–95°C at pH 7.0 and 8.0, and from 20°C–60°C at pH 6.0 at a step of 0.1°C, and the data were smoothed over 3°C before taking the first derivative. No transitions were found from 5°C–20°C, so these data are not shown. (A) 1–191 renatured in either TK₁₀₀M₀, pH 8.0 (black) or TK₁₀₀M₄, pH 8.0 (red). (B) 1–191 (black), 36–191 (red), or 62–191 (green) renatured in TK₁₀₀M₄, pH 8.0. (C) 1–191 renatured in TK₁₀₀M₄, pH 8.0 (black), MoK₁₀₀M₄, pH 7.0 (red), or MeK₁₀₀M₄, pH 6.0 (green).
