Evolution of aptamers with a new specificity and new secondary structures from an ATP aptamer

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

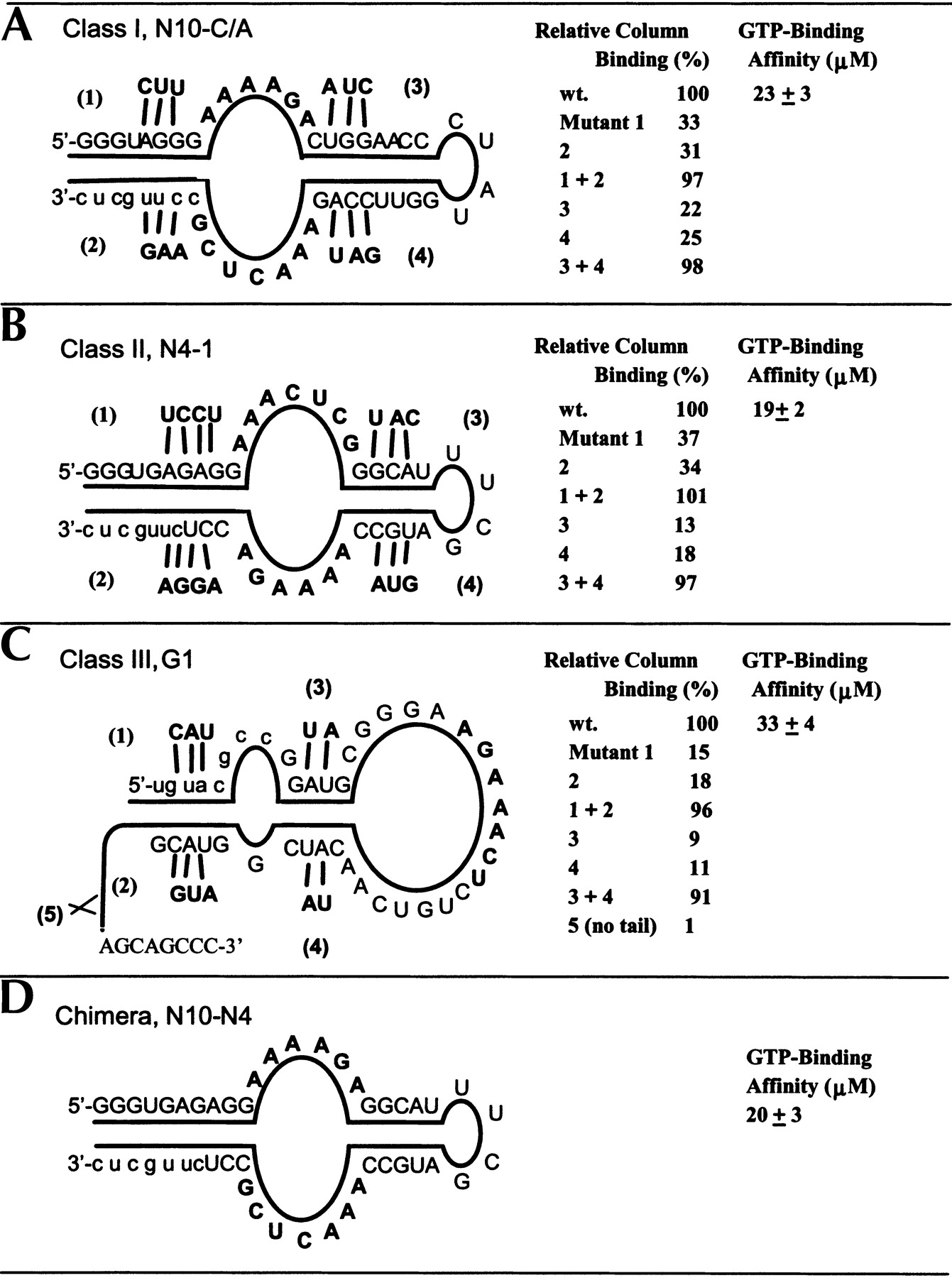

FIGURE 5.
FIGURE 5.

Compensatory mutations, secondary structures, and binding affinities of the class I, II, and III aptamers. Column binding was determined after six–column-volume wash using the binding buffer.
