RNA–protein interactions promote asymmetric sorting of the ASH1 mRNA ribonucleoprotein complex

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 6.FIGURE 6.
FIGURE 6.

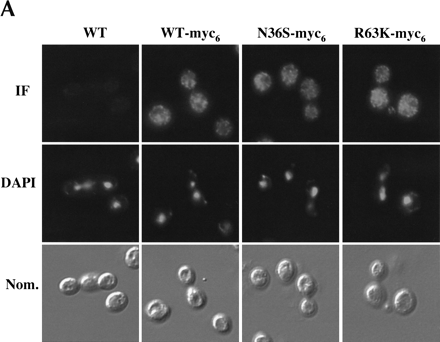

(A) The intracellular distribution of She2p mutants N36S and R63K is not altered. Representative images for the intracellular distribution of She2p-myc6. Yeast strain YLM777 was transformed with pRL453 (control), pRL199 (She2p-myc6-wt), pRL324 (She2p-myc6-N36S), or pRL322 (She2p-myc6-R63K). Transformants were grown in synthetic media minus leucine; subsequently, the cells were fixed and processed for immunofluorescence using anti-myc. (B) She2p does not accumulate in the nucleus in the absence of mRNA export. Yeast strain YLM1769 was transformed with the following combinations of plasmids: pRL718 (pESC-URA-ASH1)/YCplac22 (vector), pRL718/pRL676 (YCplac22-She2p-myc6-wt), pRL718/pRL677 (YCplac22-She2p-myc6-N36S), and pRL718/pRL678 (YCplac22-She2p-myc6-R63K). Transformants were grown at the permissive and nonpermissive temperatures as described in Materials and Methods, Temperature Shift Experiment. For immunofluorescence, anti-myc antibody was used and ASH1 mRNA was detected by FISH.

This Article

  1. RNA 9: 1383-1399
