The Saccharomyces cerevisiae U2 snRNA:pseudouridine-synthase Pus7p is a novel multisite–multisubstrate RNA:Ψ-synthase also acting on tRNAs

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 1.
FIGURE 1.

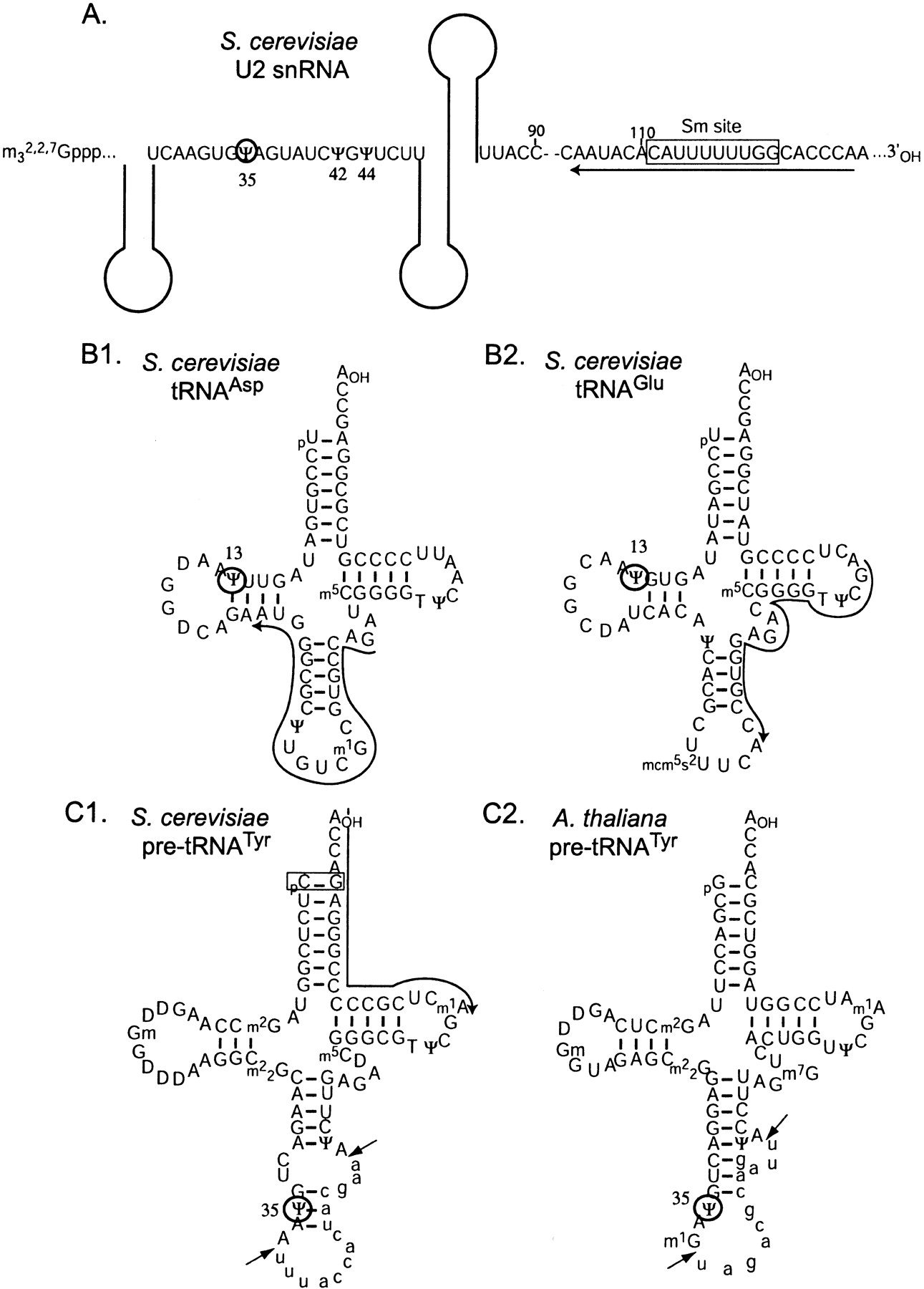

Sequences and secondary structures of the Pus7p RNA substrates studied in this work. (A) The 5′-terminal part of S. cerevisiae U2 snRNA containing the three identified Ψ residues and the Sm site (Massenet et al. 1999). (B) The S. cerevisiae tRNAAsp (B1) and tRNAGlu (B2). (C) The S. cerevisiae (C1) and A. thaliana (C2) pre-tRNATyr are drawn with all their identified post-transcriptional modifications (tRNA database; Sprinzl et al. 1998; see also Internet site http://www.uni-bayreuth.de/departments/biochemie/sprinzl/trna/). The intronic sequences in pre-tRNAs are shown in small characters and arrows indicate exon–intron borders. The Ψ residues found to be formed by Pus7p are circled. Oligonucleotides used for primer extension analysis are indicated. In the yeast pre-tRNATyr transcript the C1–G72 base pair (boxed) was converted into a G1–C72 base pair to increase transcription efficiency.
