Characterization of human Smg5/7a: A protein with similarities to Caenorhabditis elegans SMG5 and SMG7 that functions in the dephosphorylation of Upf1

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

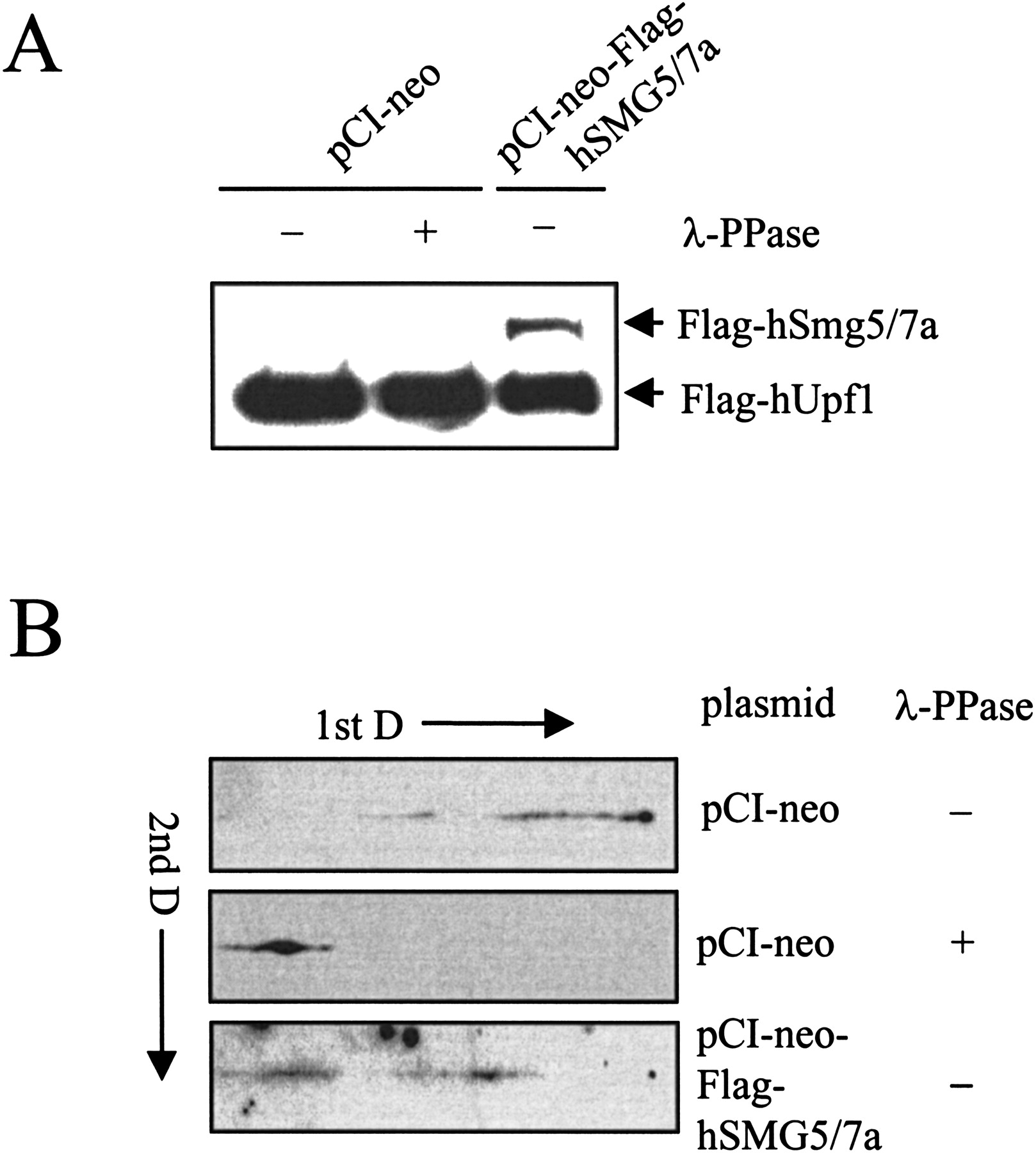

FIGURE 4.
FIGURE 4.

Overexpression of hSmg5/7a reduces the level of Upf1 phosphorylation. HEK293T cells were transiently transfected with pCI-neo-Flag-hUPF1 and either pCI-neo-Flag-hSMG5/7a or, as a control, pCI-neo. Total-cell lysates were purified by using anti-Flag antibody and incubated with or without λ-phosphatase (λ-PPase). (A) A fraction of each lysate prior to immunopurification was analyzed by Western blotting and anti-Flag antibody in order to quantitate the expression of Flag-hSmg5/7a and Flag-hUpf1 in each sample. (B) Comparable amounts of immunopurified Flag-hUpf1 were then subjected to two-dimensional gel electrophoresis under conditions that precluded detection of Flag-hSmg5/7a, and Flag-hUpf1 was localized by blotting with anti-Flag antibody.

This Article

  1. RNA 9: 77-87
