Characterization of human Smg5/7a: A protein with similarities to Caenorhabditis elegans SMG5 and SMG7 that functions in the dephosphorylation of Upf1

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

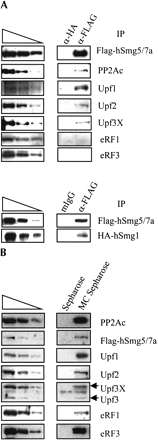

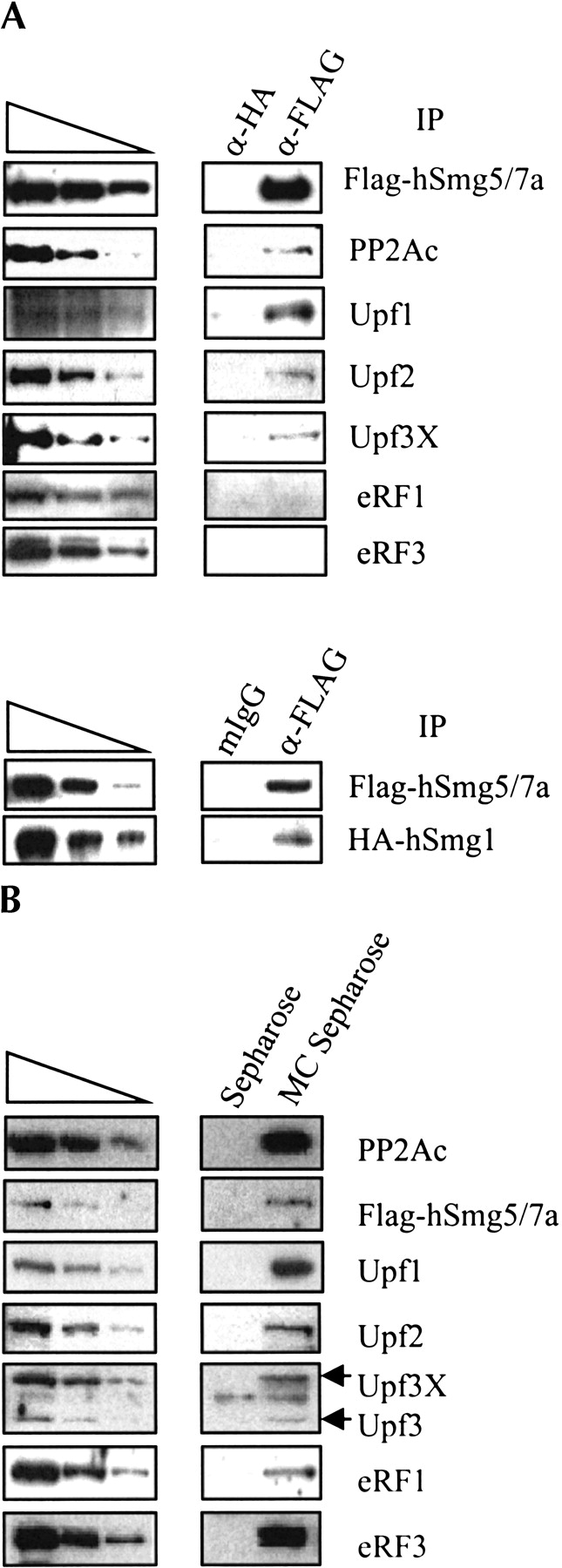

FIGURE 3.
FIGURE 3.

Flag-hSmg5/7a associates with PP2Ac, Upf1, Upf2, Upf3X, and hSmg1, but not with eRF1 and eRF3. (A) Flag-hSmg5/7a and, when specified, HA-hSmg1 were transiently expressed in Cos cells, and total-cell lysate was purified by using anti-Flag antibody, which purified 26% (top) or 3% (bottom) of cellular Flag-hSmg5/7a, or anti-HA or mouse IgG, each of which controlled for nonspecific immunopurification. (B) Alternatively, lysate was purified by using microcystin (MC)-Sepharose, which purified 50% of cellular PP2Ac, or unconjugated Sepharose, which controlled for nonspecific binding to Sepharose alone. Purified material was then analyzed by Western blotting with the specified antibodies, which consisted of those against PP2Ac, Upf1, Upf2, Upf3/3X, eRF3, eRF1, Flag (to detect Flag-hSmg5/7a), and HA (to detect HA-hSmg1).

This Article

  1. RNA 9: 77-87
