Identification of the Hfq-binding site on DsrA RNA: Hfq binds without altering DsrA secondary structure

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 1.
FIGURE 1.

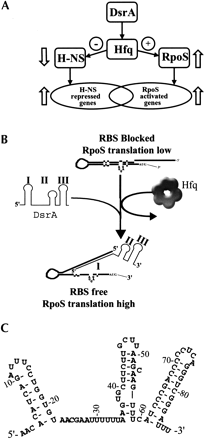

Overview and model of DsrA/Hfq/RpoS-mediated regulation. (A) Overview of the role of DsrA in H-NS and RpoS-mediated translational regulation. DsrA increases the translation of RpoS mRNA, leading to increased transcription of RpoS-regulated genes. DsrA decreases the translation of H-NS, leading to increased transcription of H-NS-repressed genes (Sledjeski et al. 1996). (B) Model of DsrA/Hfq/RpoS interaction. In this model, Hfq unfolds the RpoS 5′-leader region, allowing DsrA Domain I to base-pair with the RpoS mRNA (Majdalani et al. 1998). This stabilizes an alternative conformer of RpoS mRNA that leads to increased translation by exposing the ribosome-binding site. (C) Sequence and proposed secondary structure of DsrA based on Lease and Belfort (2000).
