Canonical microRNA loss drives tumor development, implicating therapeutic efficacy of enoxacin in angiosarcoma

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 1.
FIGURE 1.

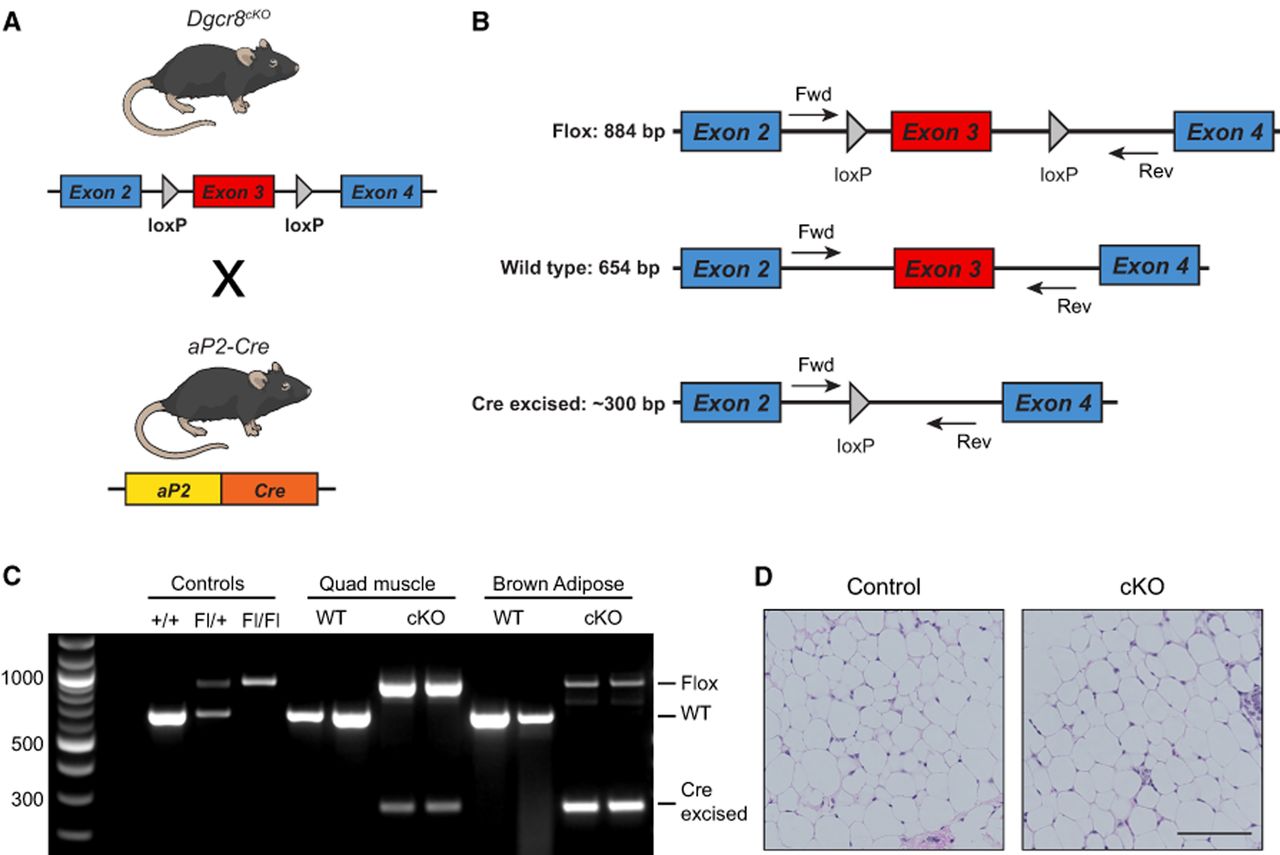

Dgcr8 conditional deletion with aP2-Cre. (A) Graphic of Dgcr8cKO and aP2-Cre alleles and breeding scheme to generate aP2-Cre;Dgcr8cKO animals. Mouse illustration from the NIAID NIH BIOART Source (bioart.niaid.nih.gov/bioart/279). (B) Map of primers for genotyping the Flox, wild-type, and Cre excised alleles by genomic PCR. (C) Genomic PCR of DNA from controls, quadriceps muscle, or brown adipose tissue of wild-type (WT) or aP2-Cre;Dgcr8Fl/Fl (cKO) animals. (D) Normal inguinal white adipose tissue H&E from a wild-type control (Cre−, Dgcr8Fl/Fl) or Cre+, aP2-Cre;Dgcr8Fl/Fl (cKO) animal; scale bar, 100 µm.

This Article

  1. RNA 32: 812-826
