High-stoichiometry m6A sites are evolutionarily conserved

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

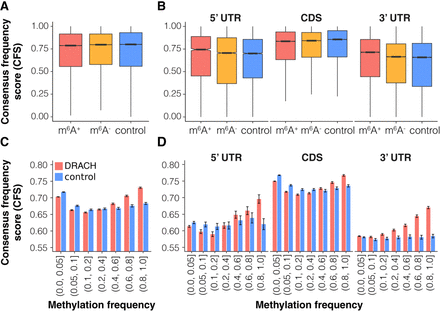

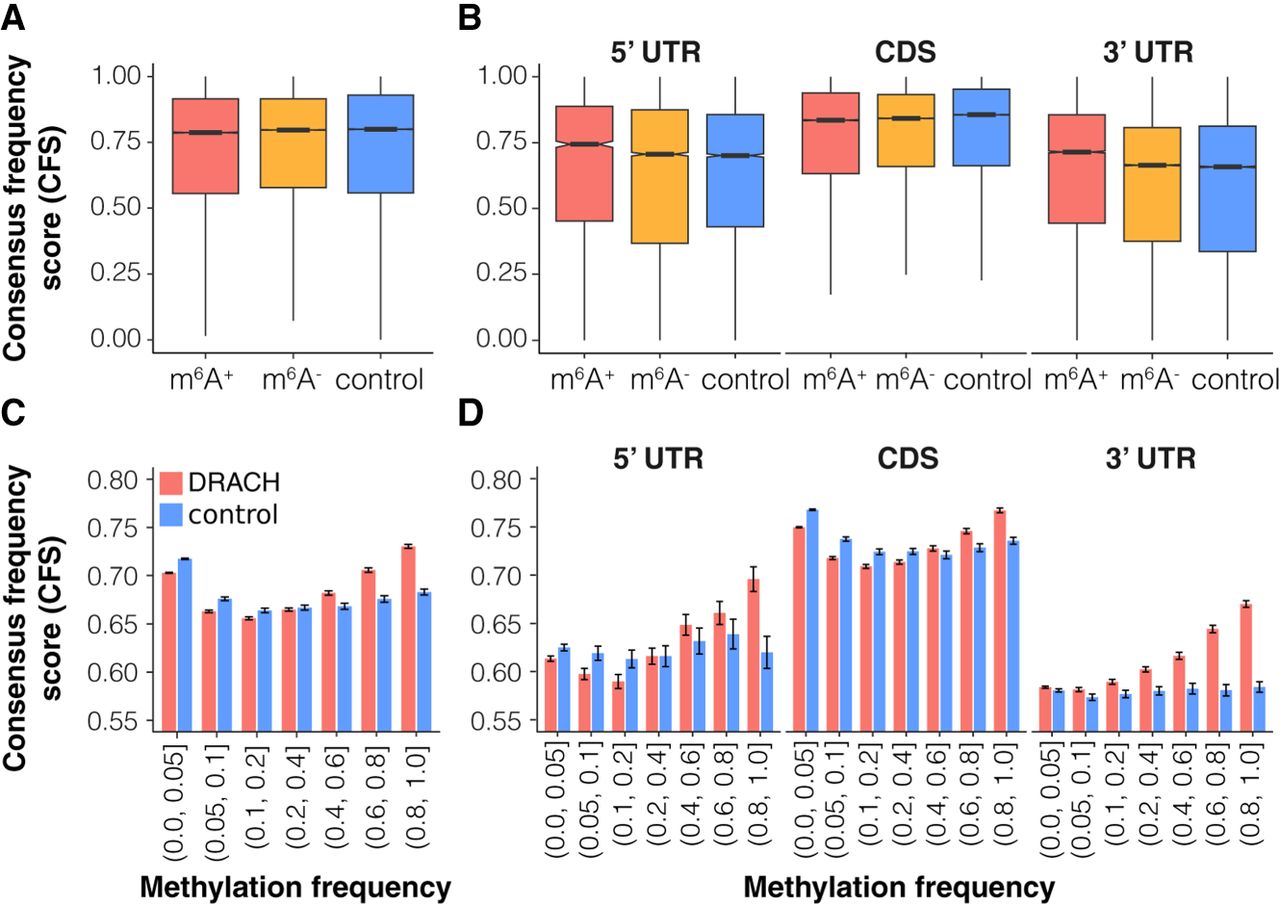

FIGURE 2.
FIGURE 2.

Highly methylated m6A sites are the most evolutionarily conserved. (A) Comparison of evolutionary conservation between methylated (m6A+) and unmethylated (m6A) DRACH sites to matched control (GDBYC) sites using consensus frequency score (CFS) and (B) separated by RNA region. (C) Comparison of CFS of DRACH and control motifs grouped by methylation frequency and (D) separated by RNA region.

This Article

  1. RNA 32: 328-340
