Novel trinucleotide mRNA capping reagents: improved synthetic route and efficient cotranscriptional incorporation in mRNA

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 6.
FIGURE 6.

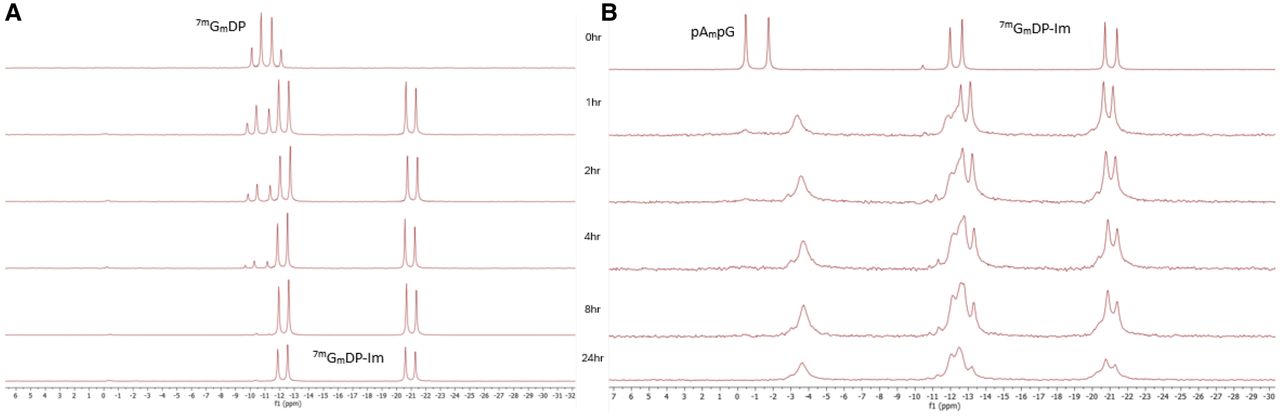

31P NMR spectra of (A) a conversion of 7mGmDP into imidazolide intermediate using EDC activation (from top to bottom: starting 7mGmDP, and formation of 7mGmDP-imidazolide after 1, 2, 4, 8, and 24 h, at room temperature); (B) the synthesis of 7mGmpppAmpG (compound 1-2A) by coupling 7mGmDP-imidazolide and pAmpG (from top to bottom: starting mixture of 7mGmDP-imidazolide and pAmpG before MgCl2 addition, and formation of 7mGmpppAmpG after 1, 2, 4, 8, and 24 h after MgCl2 addition; all at room temperature).

This Article

  1. RNA 32: 195-214
