MUTACLASH: identifying functional small RNA target sites using crosslinking-induced mutations

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 2.
FIGURE 2.

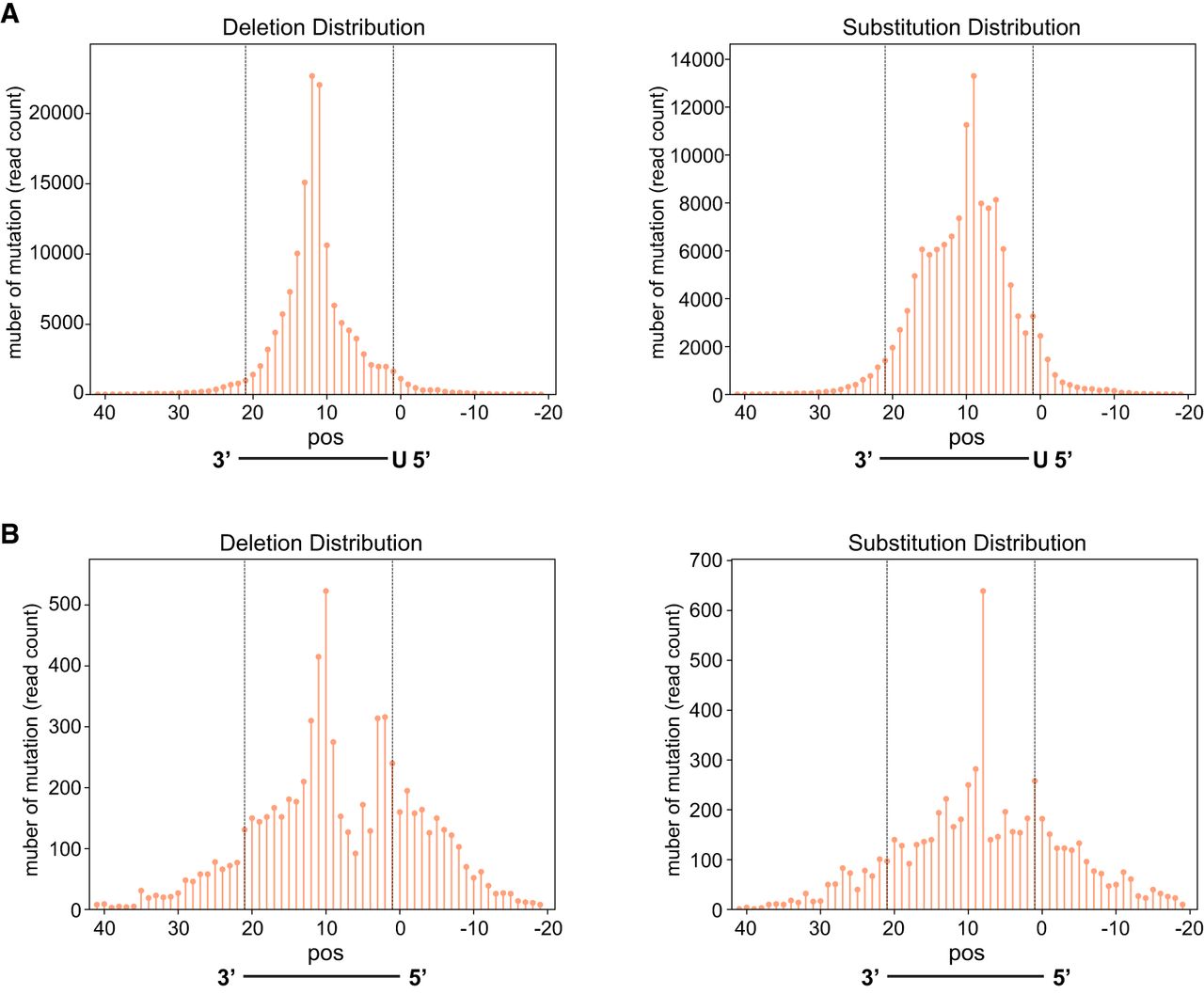

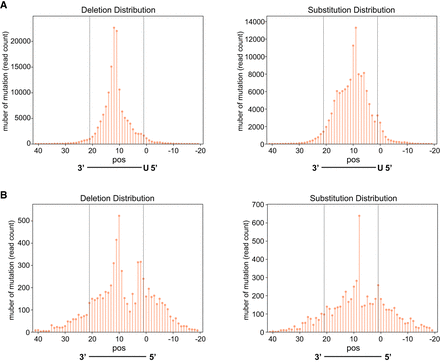

The distribution of CIMs at piRNA and miRNA targeting sites. (A) The number of deletions (left) and substitutions (right) found at the indicated position (pos) of mRNAs corresponding to their targeting piRNAs from PRG-1 piRNA CLASH data. (B) The number of deletions (left) and substitutions (right) found at the indicated position (pos) of mRNAs corresponding to their targeting miRNA ALG-1 miRNA Argonaute iCLIP data.

This Article

  1. Published in Advance December 2, 2025, doi: 10.1261/rna.080482.125 RNA 32: 115-130
