Comparative analyses of disease-linked missense mutations in the RNA exosome modeled in budding yeast reveal distinct functional consequences in translation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

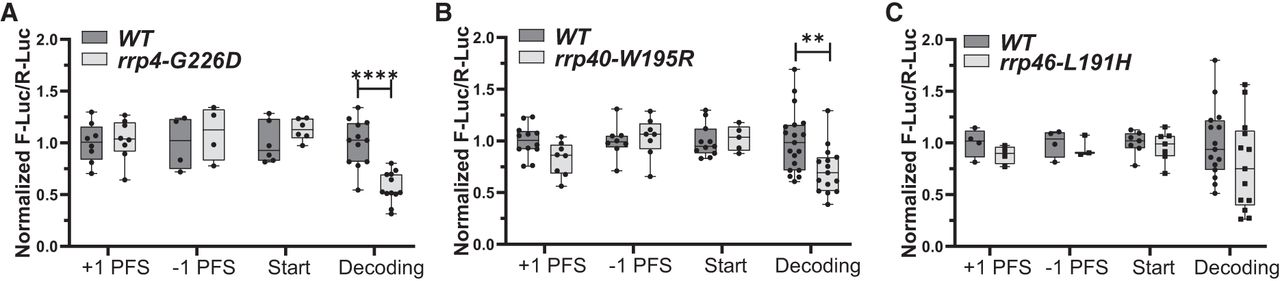

FIGURE 9.
FIGURE 9.

Translation fidelity defects in the RNA exosomopathy mutant yeast models compared to wild-type control cells. Dual-luciferase reporter assays were used to measure translation fidelity. The expression of firefly and Renilla luciferase was measured in rrp4-G226D (A), rrp40-W195R (B), and rrp46-L191H (C) mutant cells, compared to the corresponding wild-type control cells. The ratio of firefly luciferase to Renilla luciferase was normalized to control plasmids. Four to 12 biological replicates were analyzed.
