Constructing an active chimeric pRNA ring with a stoichiometry of six and identifying 12 domains of the pRNA ring binding to the 12-subunit channel of phi29 DNA-packaging motor

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

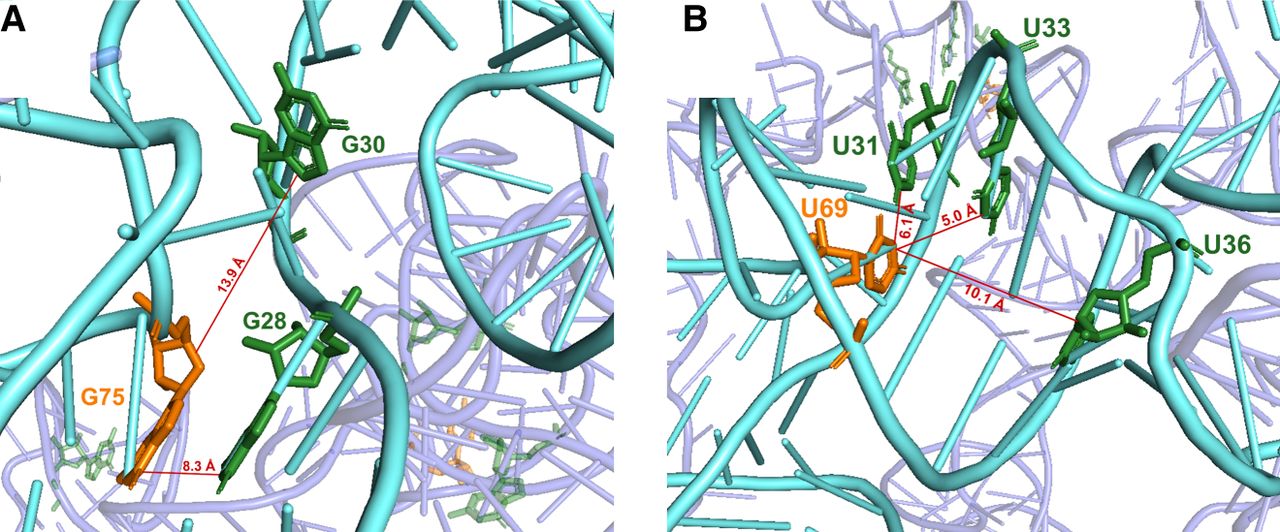

FIGURE 12.
FIGURE 12.

Evaluation of the distance and location of the final structure with experimental probing data. (A) Comparing the structure with the results of psoralen cross-linking revealing an agreement that G75 (orange) cross-linked to G28 and G30 (green). (B) Comparing the structure with the results of phenphi cross-linking revealed the agreement with the data that U69 (orange) cross-linked to U31, U33, and U36 (green).

This Article

  1. Published in Advance April 1, 2025, doi: 10.1261/rna.080383.125 RNA 31: 836-849
