Protein binding in an mRNA 5′-UTR sterically hinders translation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

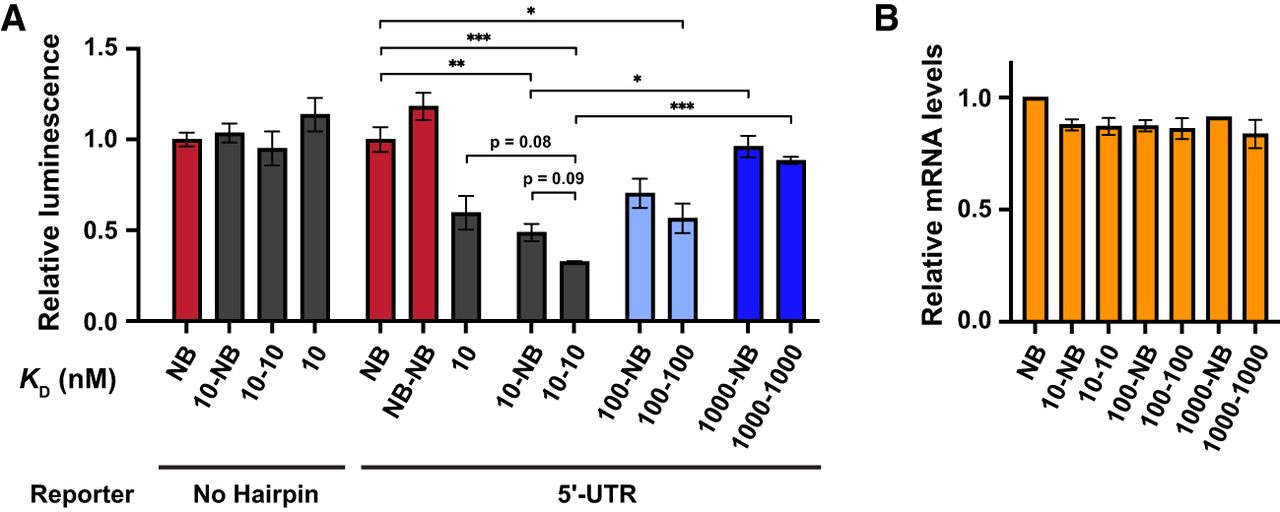

FIGURE 3.
FIGURE 3.

Effect of steric bulk and potential RNA dimerization on translation. (A) Luciferase signal from reporter without and with the target hairpin in the 5′-UTR upon expression of MCP-D variants with similar or different RNA-binding domains (homo- and heterodimers, respectively). NanoLuc luminescence was normalized to firefly luciferase signal and plotted relative to signal in the presence of the NB variant. Protein-encoding plasmids were transfected at 15 ng/well. Means ± SEMs of biological triplicates are shown. (*), (**), and (***) P-values < 0.05, 0.01, and 0.001, respectively; Student's t-test. Complete data set presented in Supplemental Figures S1 and S2. (B) Relative reporter mRNA levels upon expression of MCP-D variants normalized to expression in the presence of NB MCP-M. Protein-encoding plasmids were transfected at 15 ng/well. Means ± SEM of biological duplicates, two technical measurements each, are shown.

This Article

  1. RNA 31: 143-149
