40S ribosomal subunits scan mRNA for the start codon by one-dimensional diffusion

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

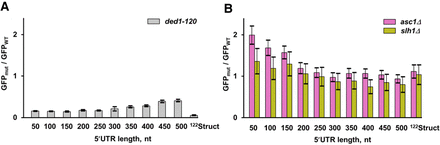

FIGURE 7.
FIGURE 7.

Translational helicases Ded1 and Slh1 are not essential for 40S scanning. GFP fluorescence measured in mutant strains normalized to respective GFP fluorescence in the wild-type (BY4741) strain. Error bars indicate standard deviations determined from three biological replicates. (A) NUS1 RNA-ID constructs were transformed into a ded1-120 strain containing cold-sensitive allele ded1-120, which encodes the mutant form of Ded1 helicase bearing the amino acid substitutions G108D and G494D. (B) NUS1 RNA-ID constructs were transformed into the slh1Δ or asc1Δ strains, helicase Slh1 and ribosomal protein Asc1, respectively. In A, GFP synthesis was induced concurrently with the temperature shift from 30°C to 18°C.
