Small molecule telomerase inhibitors are also potent inhibitors of telomeric C-strand synthesis

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 6.
FIGURE 6.

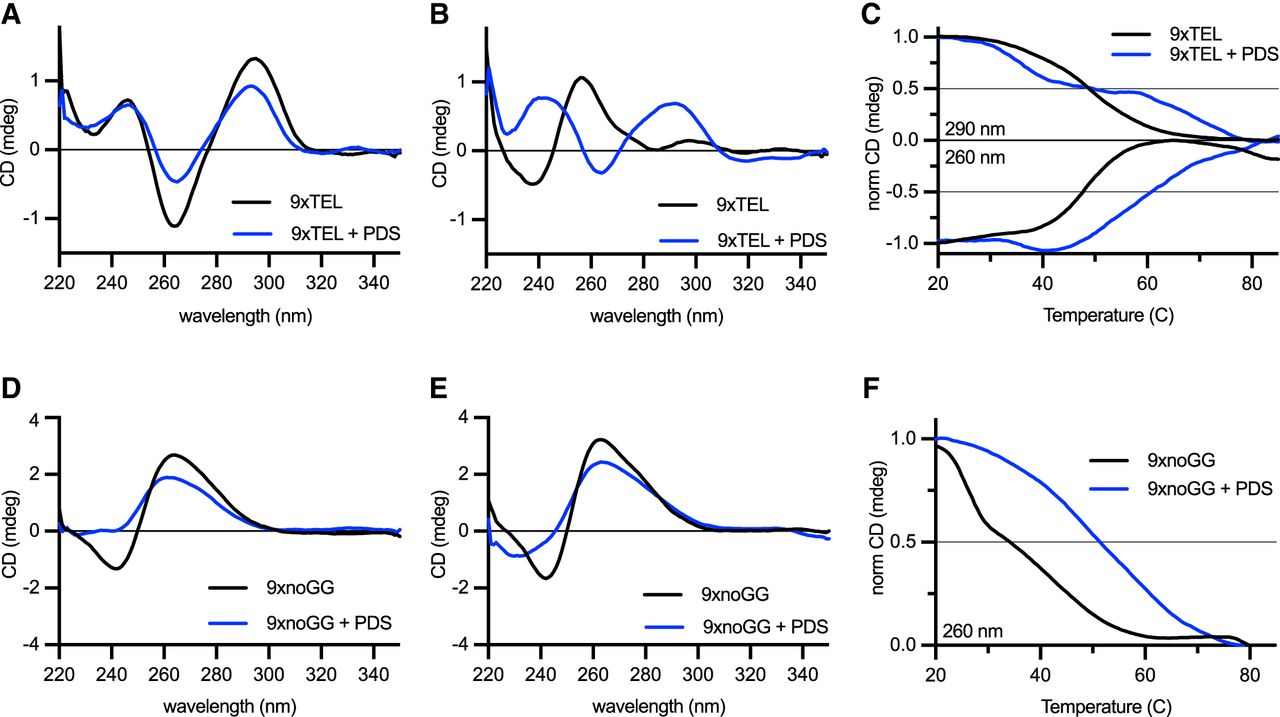

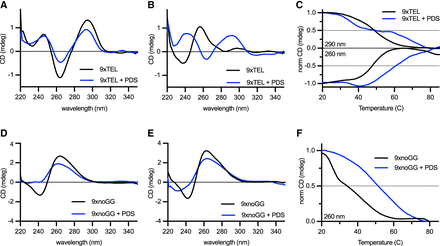

PDS stabilizes template DNA secondary structure. (A) CD spectra of 9xTEL in NaCl with and without 10-fold molar excess PDS. (B) CD spectra of 9xTEL in LiCl with and without 10-fold molar excess PDS. (C) Thermal melting of 9xTEL in NaCl with and without 10-fold molar excess PDS. The CD was monitored at 290 and 260 nm and normalized between 1 and 0 or between −1 and 0, respectively. (D) CD spectra of 9xnoGG in NaCl with and without 10-fold molar excess PDS. (E) CD spectra of 9xnoGG in LiCl with and without 10-fold molar excess PDS. (F) Thermal melting of 9xnoGG in NaCl with and without 10-fold molar excess PDS. The CD was monitored at 260 nm and normalized between 1 and 0.
