Modeling the structure and DAP5-binding site of the FGF-9 5′-UTR RNA utilized in cap-independent translation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 1.
FIGURE 1.

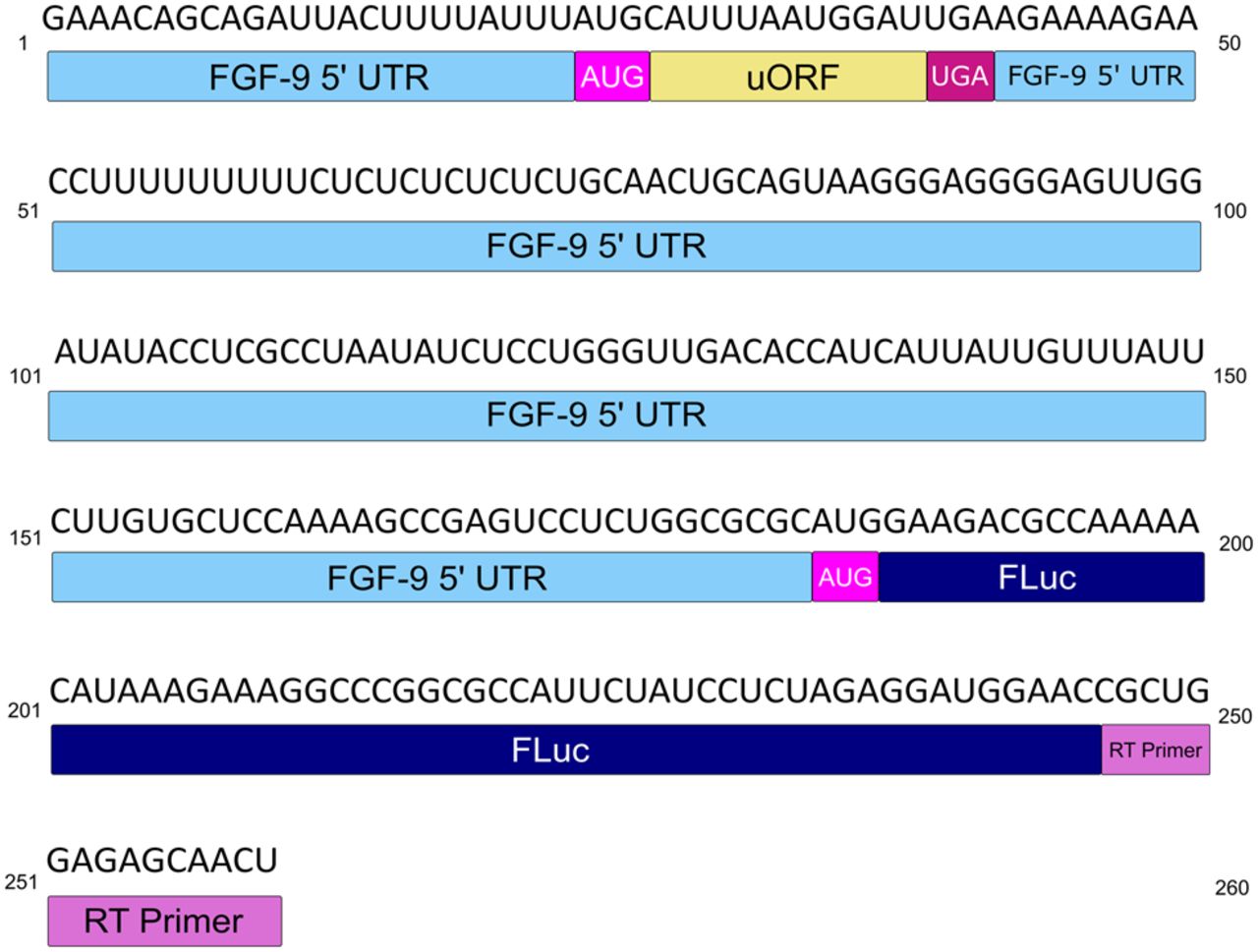

wt FGF-9 5′-UTR construct. The FGF-9 5′ UTR (sky blue) and partial firefly luciferase (FLuc) reporter sequence (navy) RNA used for this study. The FGF-9 uORF (nt [nucleotides] 27–38) is annotated in goldenrod, uAUG in magenta, and uUGA in maroon. A cy5-tagged reverse transcript primer (orchid), corresponding to part of the FLuc reporter, was used to create cDNA from treated RNA.

This Article

  1. Published in Advance June 12, 2024, doi: 10.1261/rna.080013.124 RNA 30: 1184-1198
