Quantification of tRNA m1A modification by templated-ligation qPCR

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

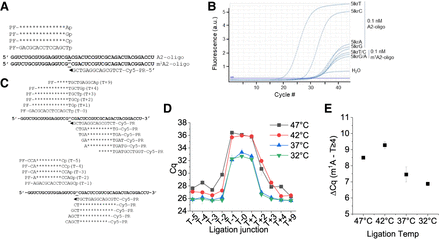

FIGURE 3.
FIGURE 3.

Optimization of TL-qPCR efficiency regarding m1A proximity and ligation temperature. (A) Oligonucleotides used and ligation oligo design. (B) Amplification curves of linker 5lkrT/C/G/A in A and m1A oligo in ligation. (C) Ligation oligo design at varying ligation sites away from the m1A site. (D) Cq plots as a function of ligation oligos with ligation sites at m1A (T + 0) or progressively away from the m1A site. (E) ΔCq values between the m1A site and control site (using average Cq values of sites ≥4 nt away from the m1A site) under different template splint ligation temperatures.

This Article

  1. Published in Advance March 12, 2024, doi: 10.1261/rna.079895.123 RNA 30: 739-747
