Challenges to mapping and defining m6A function in viral RNA

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 2.
FIGURE 2.

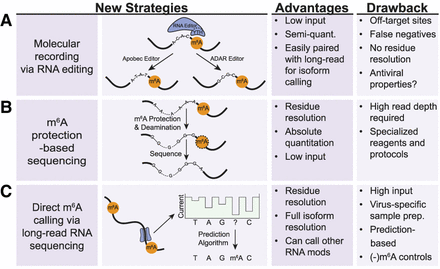

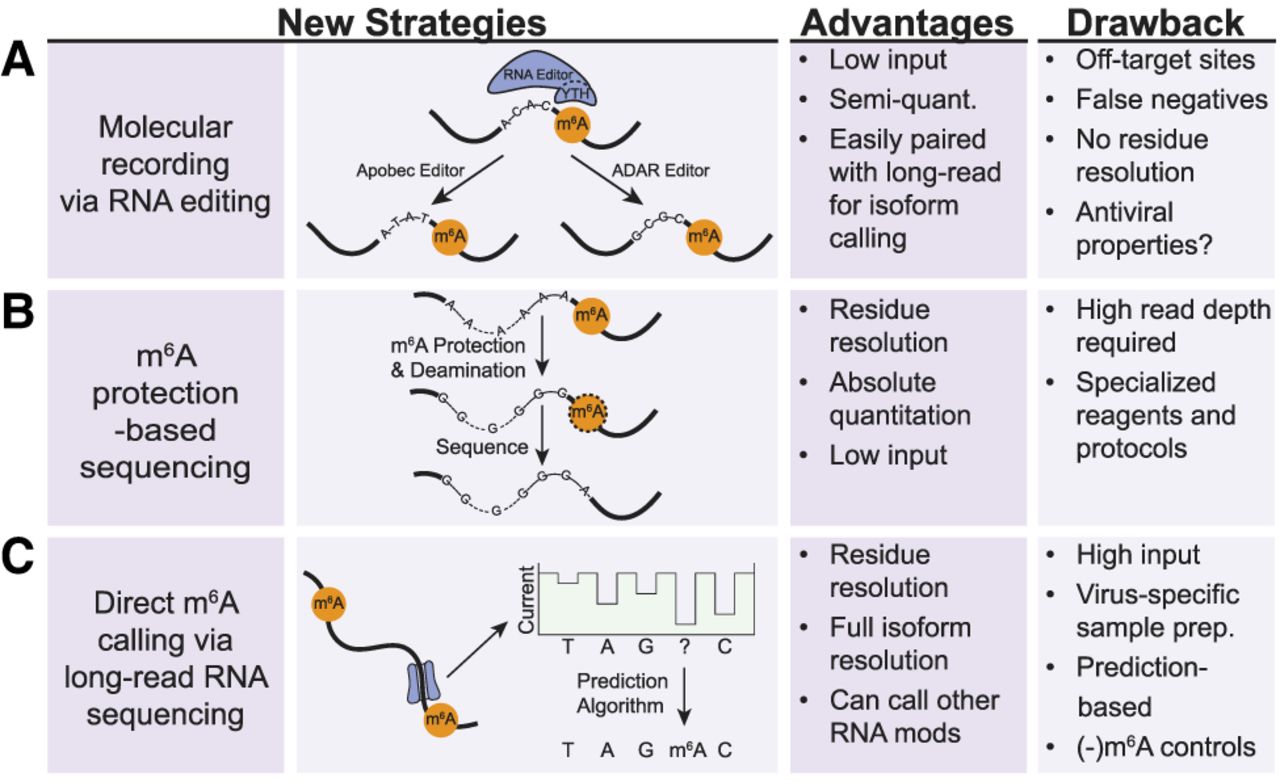

Recent strategies in m6A mapping and quantification that could be applied to viral infection studies. (A) “Molecular recording” techniques in which m6A readers are fused to RNA editing enzymes can address issues with input requirements, quantitative measurement, and isoform (when paired with cDNA long-read sequencing). (B) Protection-based sequencing techniques selective for m6A can directly map m6A at single-nucleotide resolution with absolute quantification. (C) Measuring m6A using long-read direct RNA sequencing can identify individual m6A RNA profiles across a population of transcripts at high resolution.
