The Bacillus subtilis ywbD gene encodes RlmQ, the 23S rRNA methyltransferase forming m7G2574 in the A-site of the peptidyl transferase center

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

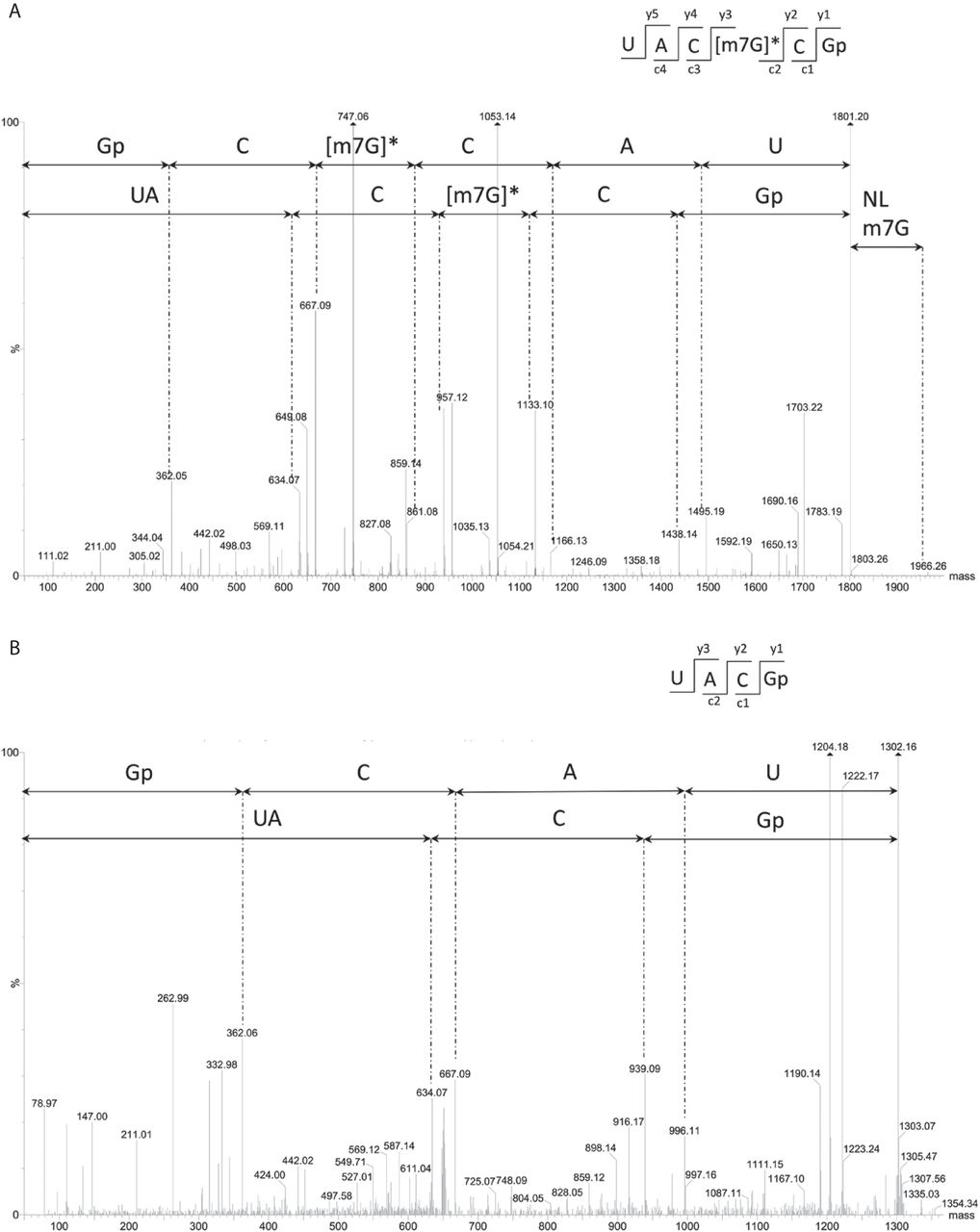

FIGURE 2.
FIGURE 2.

Identification of m7G at position 2574 of B. subtilis 23S rRNA using mass spectrometry. (A) MS/MS sequencing spectra of 1966.3 Da (m/z 982.63, z = 2−), sequence UAC[m7G]CGp, obtained from the analysis of B. subtilis WT 23S RNase H fragment after T1 digestion. Collision-induced dissociation (CID) fragmentation shows a neutral loss of 165 Da, which is specific to m7G and corresponds to the loss of the methylated base. (B) MS/MS sequencing spectra of 1302.2 Da (m/z 650.58, z = 2−), sequence UACGp, obtained from the analysis of B. subtilis ΔywbD 23S RNase H fragment after T1 digestion. The 3′Gp corresponds to the position 2574.
