Regulatory interplay between SR proteins governs CLK1 kinase splice variants production

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

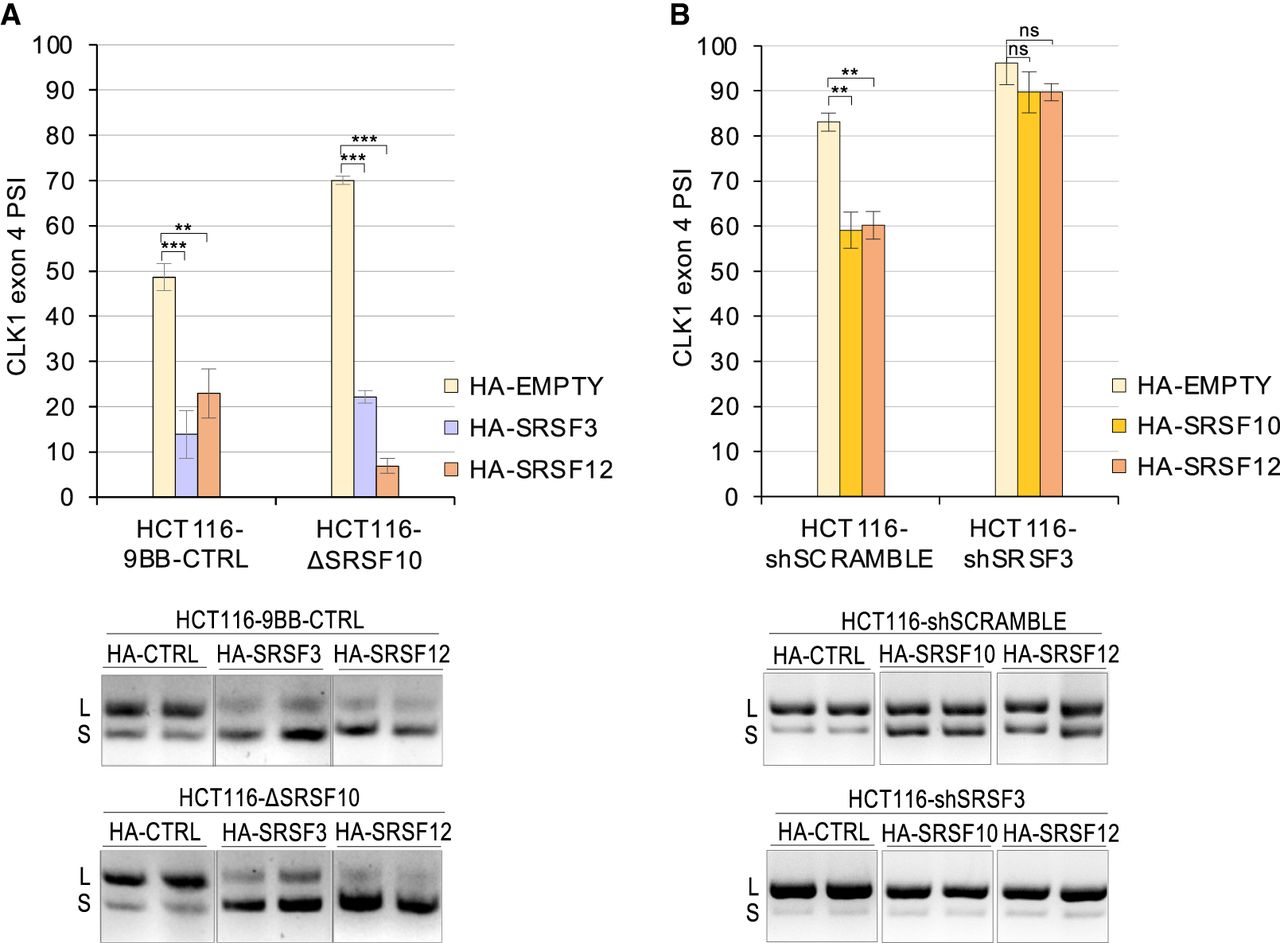

FIGURE 4.
FIGURE 4.

SRSF10 is not required for the activity of SRSF3 and SRSF12, but SRSF3 is required for the activity of SRSF10 and SRSF12. (A) HCT116ΔSRSF10 cells and a control HCT116 cell line were used to test the activity of HA-SRSF3 and HA-SRSF12. Forty-eight hours after transfection with the HA-SR or a control (EMPTY) plasmids, RNA was extracted, and RT-PCR assays were conducted to monitor CLK1 exon 4 splicing (duplicates shown). PSI values were compiled and represented in a graph according to cell lines. (B) HCT116 cells were infected with an shSRSF3 or shSCRAMBLE adenovirus and then transfected with HA-SR or control (EMPTY) plasmids. Samples were processed as in A.
