Fu Xu; Anders S. Byström; Marcus J.O. Johansson

Sod1-deficient cells are impaired in formation of the modified nucleosides mcm⁵s²U and yW in tRNA

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

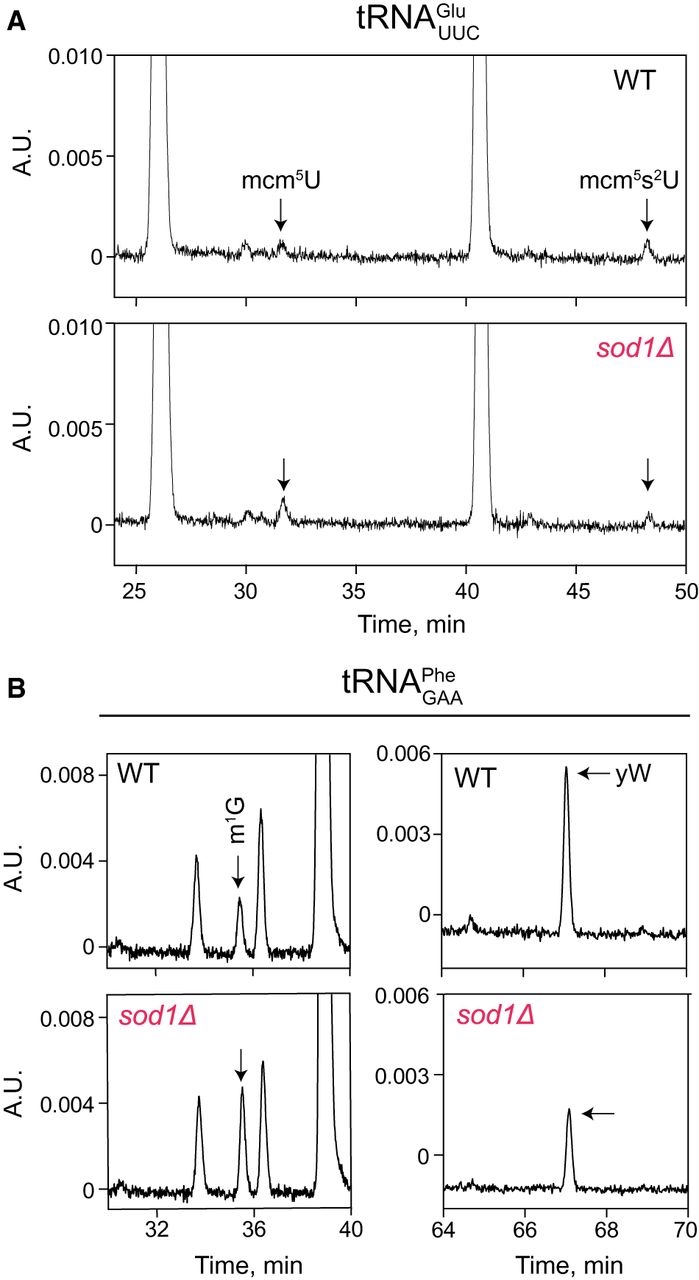

FIGURE 2.

Sod1 deficiency is associated with distinct tRNA modification defects. (A,B). HPLC analyses of nucleosides in $\text{[math]}$ (A) and $\text{[math]}$ (B) isolated from wild-type (MJY1150) and sod1Δ (MJY1152) cells. The absorbance units (A.U.) were measured at 254 nm or 240 nm (yW). The chromatograms represent one of two independently performed experiments, which showed comparable results.
