Transcriptome-wide probing reveals RNA thermometers that regulate translation of glycerol permease genes in Bacillus subtilis

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 4.
FIGURE 4.

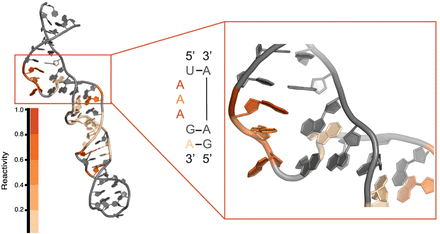

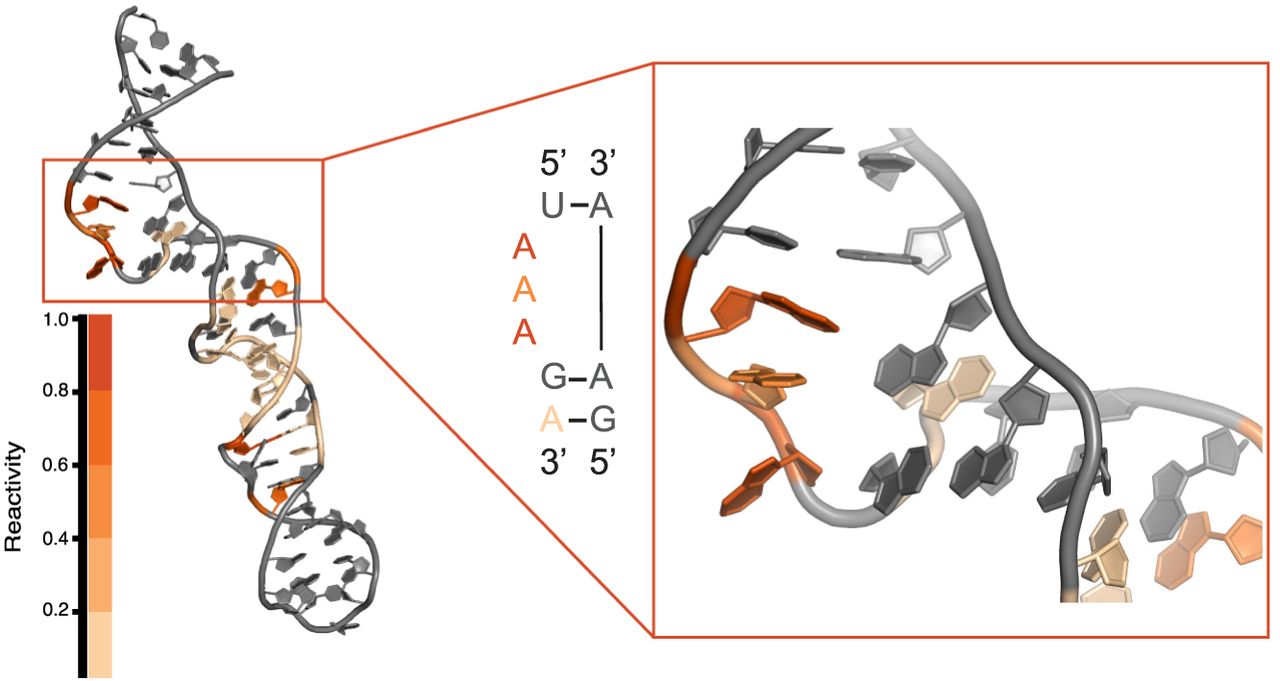

Mapping in vivo reactivity onto a known RNA motif. The tyrS T box riboswitch from B. subtilis contains a k-turn in the lower portion of the structure (PDB ID: 2KZL). This particular k-turn is characterized by three bulged A residues followed by two GA base pairs. The bulged A residues show moderate (orange) to strong (dark orange) DMS reactivity at 37°C.

This Article

  1. Published in Advance May 22, 2023, doi: 10.1261/rna.079652.123 RNA 29: 1365-1378
