Disruption of the Aspergillus fumigatus RNA interference machinery alters the conidial transcriptome

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

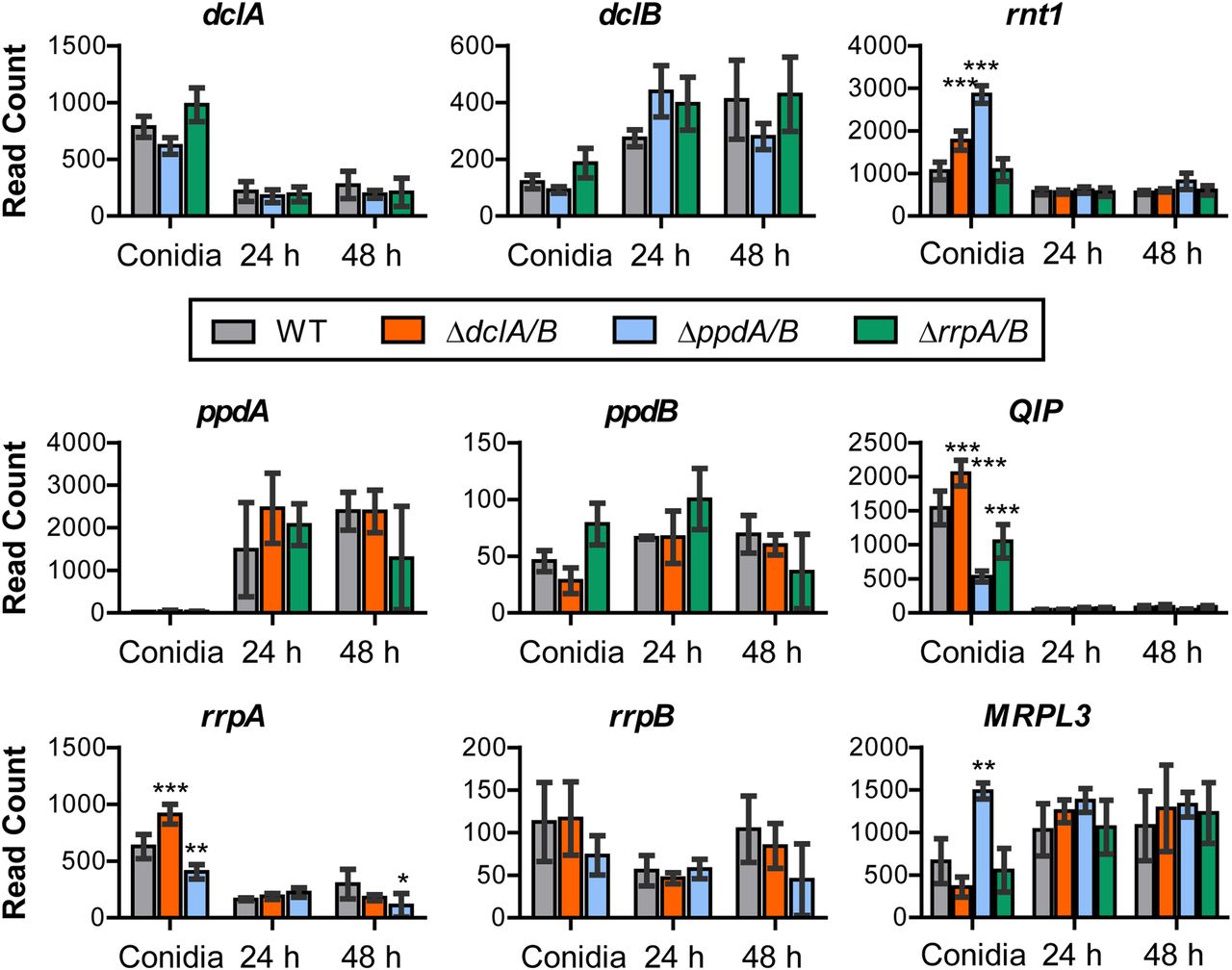

FIGURE 5.
FIGURE 5.

The RNAi genes are differentially expressed in conidia and mycelium. Median ratio normalization (MRN) expression indicated as read count of individual genes in conidia, 24-h and 48-h mycelium using the mRNA-seq experiment described in Figure 3. Significance was determined by two-way ANOVA with Bonferroni-corrected post hoc t-test, resulting in some minor differences from the data analyzed in Figure 3. (*) P ≤ 0.05, (**) P ≤ 0.01, (***) P ≤ 0.001.

This Article

  1. RNA 29: 1033-1050
